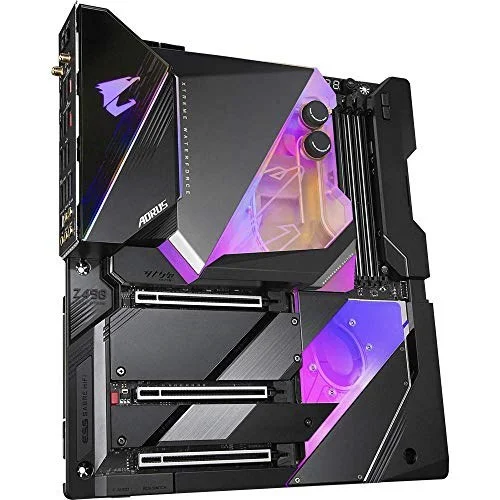

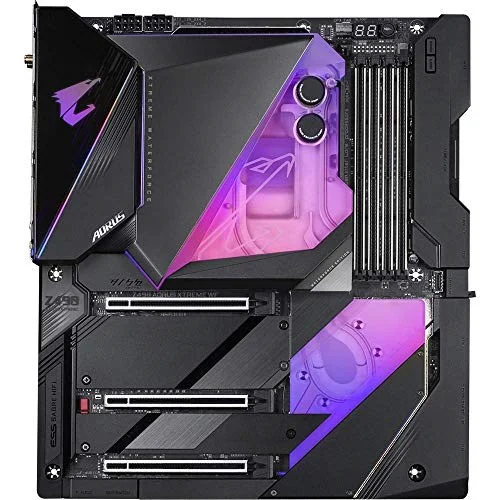

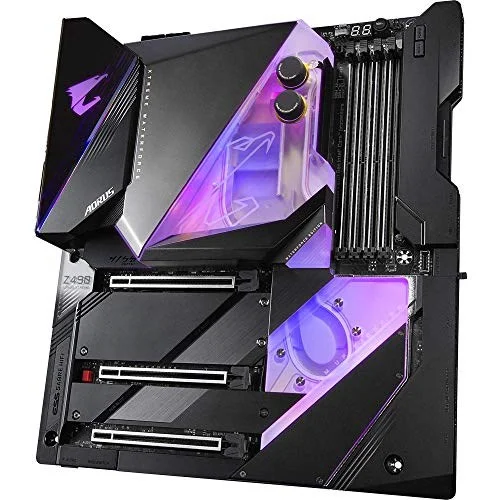

Gigabyte Z490 AORUS XTREME WATERFORCE

Gigabyte Z490 AORUS XTREME WATERFORCE LGA1200 EATX DDR4 128 GB Motherboard

Gigabyte Motherboard $827.71

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte Z490 AORUS XTREME WATERFORCE is a EATX motherboard for LGA1200. It supports DDR4 memory up to 5000 MT/s (OC).

Support For 10Th Generation Intel LGA 1200 Cpus
Supports 4 X DDR4 Dual Channel Non-ECC Unbuffered Dimms XTREME MEMORY With SMT DIMM And Shielded Memory Routing
16+1 Phases Digital VRM Solution With 90A Smart Power Stage And Tantalum Polymer Capacitors Array
AORUS All-In-One Monoblock For CPU, VRM, SSD And PCH Water Cooling
Intel Thunderbolt 3 Onboard

Manufacturer	Gigabyte
Model Number	Z490 AORUS XTREME WATERFORCE Z490 AORUS XTREME WF
Launch Date	June 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-5000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2280 / 22110 - M Key, 2242 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

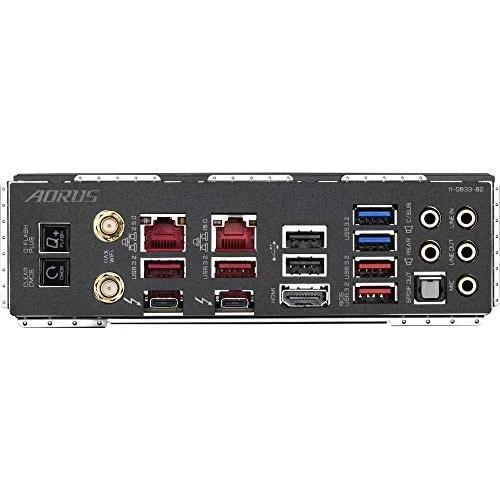

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z490 AORUS XTREME WATERFORCE
SKU Code	Z490 AORUS XTREME WATERFORCE
GTIN / EAN	889523021552
