Gigabyte Z490 VISION D

Gigabyte Z490 VISION D LGA1200 ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $272.32

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

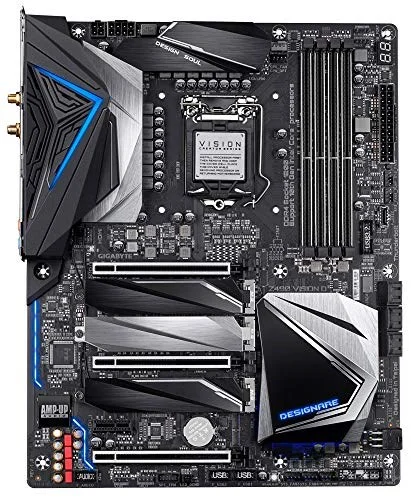

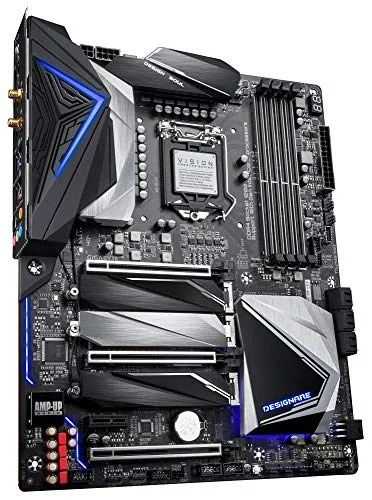

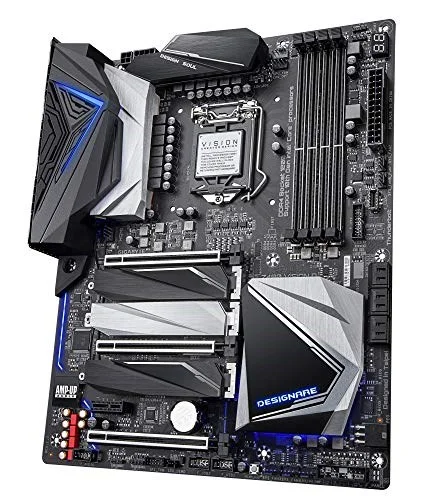

The Gigabyte Z490 VISION D is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4400 MT/s (OC).

Supports 10Th Gen Intel Core Processors
Direct 12 Phases Digital VRM With 50A Smart Power Stage
Advanced Thermal Design With Optimized Surface Heatsink And Next Generation Direct Touch Heatpipe
Dual Channel Non-ECC Unbuffered DDR4, 4 Dimms
Intel 2.5 Gbe LAN
3X M.2 AORUS Next Generation Thermal Guard
Intel Wifi 6 And Bluetooth 5 2X2 With High Gain Antenna
AMP UP Audio ALC1220-VB2 AUDIO DAC
RGB Fusion 2.0
Smart Fan 5 Hybrid Fan Headers With Smart Fan Functions (Fan Stop, PWM Controls, Noise Detection)

Manufacturer	Gigabyte
Model Number	Z490 VISION D
Launch Date	May 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2280 / 22110 - M Key, 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

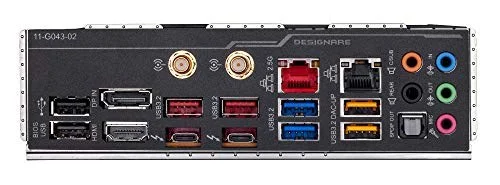

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z490 VISION D
SKU Code	Z490 VISION D
GTIN / EAN	889523021538
