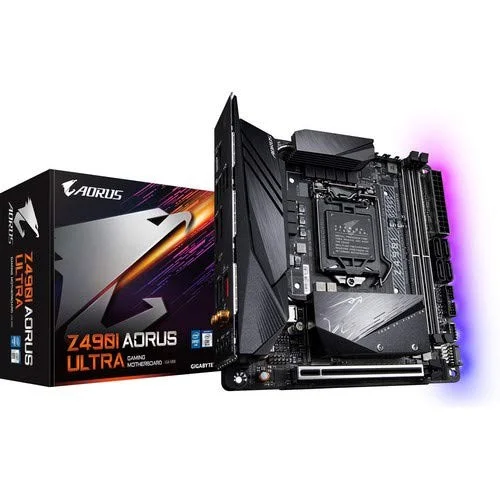

Gigabyte Z490I AORUS ULTRA

Gigabyte Z490I AORUS ULTRA LGA1200 Mini-ITX DDR4 64 GB Motherboard

Gigabyte Motherboard $289

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte Z490I AORUS ULTRA is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 5000 MT/s (OC).

Supports 10th Gen Intel Core processors
Direct 8 Phases Digital VRM with 90A Smart Power Stage with Tantalum Polymer Capacitors Array
Extended MOSFET Heatsink and Multi-layed PCH M.2 Heatsink with Heatpipes
Xtreme Memory Design Dual Channel DDR4 (4x DIMM slots)
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel 2.5 GbE LAN
2x M.2 Slots and 1x AORUS Next Gen Thermal Guard

Manufacturer	Gigabyte
Model Number	Z490I AORUS ULTRA
Launch Date	May 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-5000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z490I AORUS ULTRA
SKU Code	Z490I AORUS ULTRA
GTIN / EAN	889523021354
