GIGABYTE Z590 AORUS MASTER

GIGABYTE Z590 AORUS MASTER LGA1200 ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $129.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ590

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The GIGABYTE Z590 AORUS MASTER is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5400 MT/s (OC).

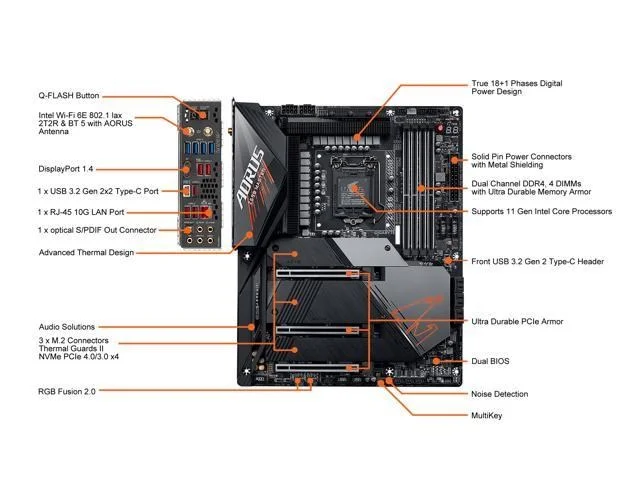

Supports 11th and 10th Gen Intel Core Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Intel Optane Memory Ready 18+1 Phases Digital VRM Solution with 90A Smart Power Stage Tantalum Polymer Capacitors Array Shielded Memory Routing to Avoid Interference Advanced Thermal Solution with Fins-Array II Direct Touch Heatpipe II and NanoCarbon Baseplate Onboard Intel WiFi 6E 802.11ax 2T2R & BT 5 with AORUS Antenna 125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC AQUANTIA 10GbE BASE

Manufacturer	GIGABYTE
Model Number	Z590 AORUS MASTER
Launch Date	February 2021
CPU Socket	LGA1200
Chipset Model	Intel Z590
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-4933 / DDR4-5000 / DDR4-5133 / DDR4-5333 / DDR4-5400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key (Intel 11th Gen only)
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

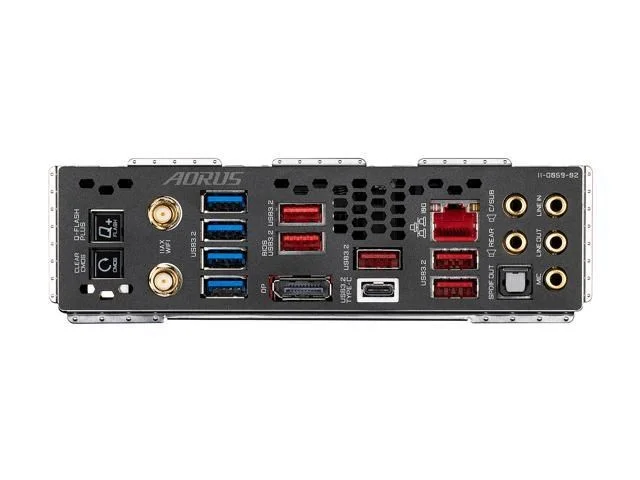

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z590 AORUS MASTER
SKU Code	Z590 AORUS MASTER
GTIN / EAN	889523026472
