GIGABYTE Z590 VISION D

GIGABYTE Z590 VISION D LGA1200 ATX DDR4 128 GB Motherboard

Gigabyte Motherboard $179.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ590

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The GIGABYTE Z590 VISION D is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5333 MT/s (OC).

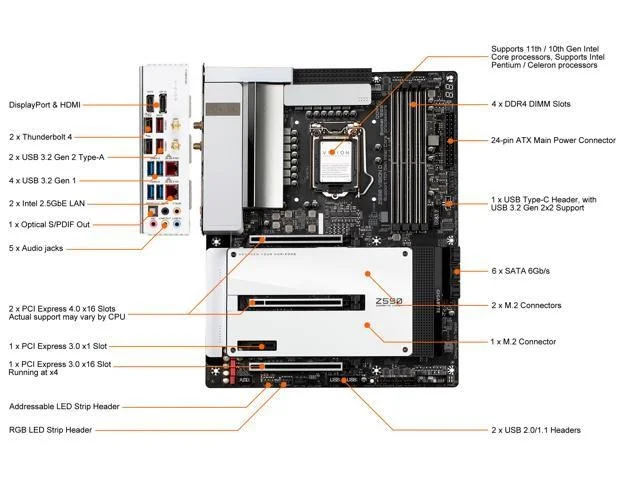

Powerful performance support 11th and 10th Gen Intel Core Series Processors Dual Channel Non-ECC Unbuffered DDR4 memory, 4 DIMMs Go further without more cables by VisionLINK TB I/O design The limitless connectivity by Thunderbolt 4 High-bandwidth and low-latency network support by dual Intel 2.5GbE LAN Intel Wi-Fi 6 2x2 802.11ax with all new antenna support for better signal SuperSpeed USB 3.2 Gen2x2 Type-C Header Triple Ultra-Fast NVMe PCIe x4 M.2 connectors with unique thermal guards Comprehen

Manufacturer	GIGABYTE
Model Number	Z590 VISION D
Launch Date	March 2021
CPU Socket	LGA1200
Chipset Model	Intel Z590
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3600 / DDR4-3866 / DDR4-4000 / DDR4-4200 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5133 / DDR4-5333 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 / 22110 - M Key, 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key (Intel 11th Gen only)
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

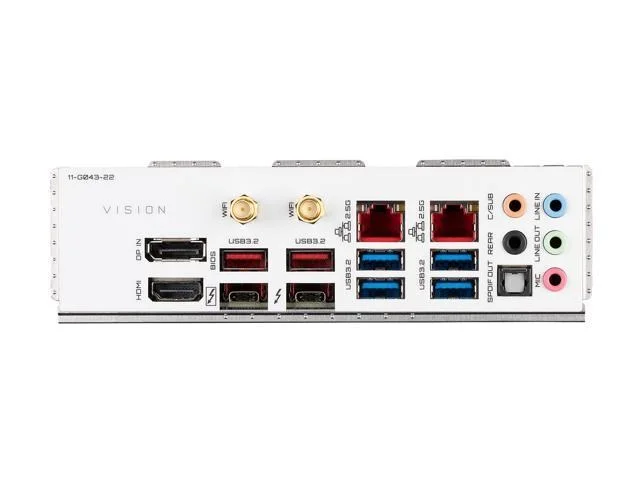

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z590 VISION D
SKU Code	Z590 VISION D
GTIN / EAN	889523027431
