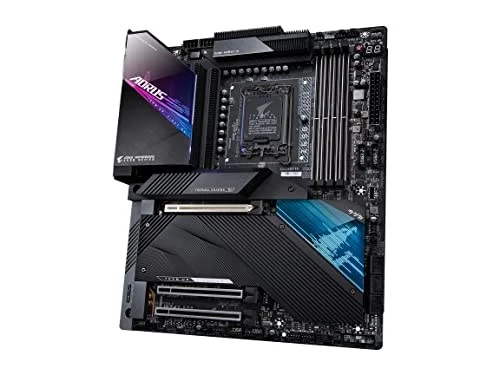

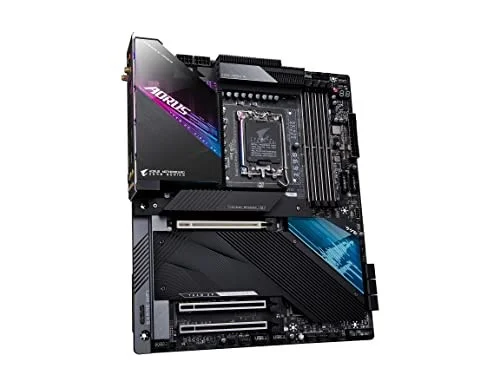

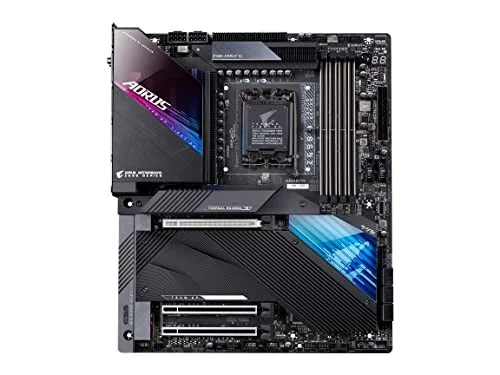

Gigabyte Z690 AORUS MASTER

Gigabyte Z690 AORUS MASTER LGA1700 EATX DDR5 192 GB Motherboard

Gigabyte Motherboard $361.98

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorEATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte Z690 AORUS MASTER is a EATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).

Intel LGA 1700 Socket: Supports 12Th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5
Commanding Power Design: 19+1+2 Phases Direct VRM Design With 105A Power Stage With Tantalum Polymer Capacitors
Cutting-Edge Thermal Design: Thermal Reactive Armor With Nanocarbon Fins-Array III, Heatsink
Direct Touch Heatpipe II, Nanocarbon Baseplate, Thermal Guards XTREME

Manufacturer	Gigabyte
Model Number	Z690 AORUS MASTER
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	EATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	5 × M.2
M.2 Device Compatibility	2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z690 AORUS MASTER
SKU Code	Z690 AORUS MASTER
GTIN / EAN	889523030035
