Gigabyte Z690I AORUS ULTRA DDR4

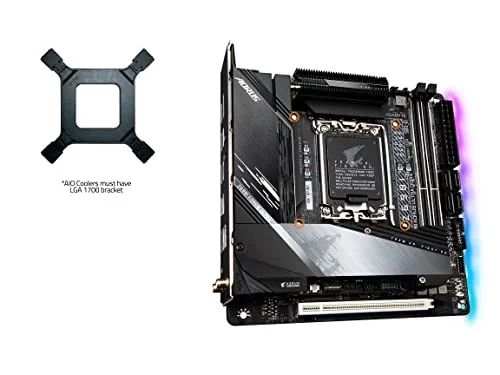

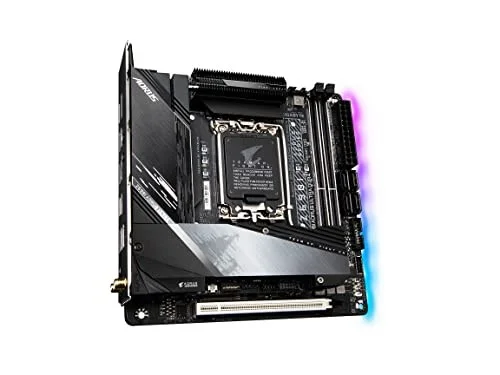

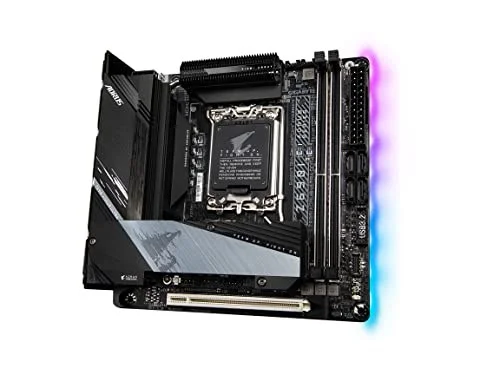

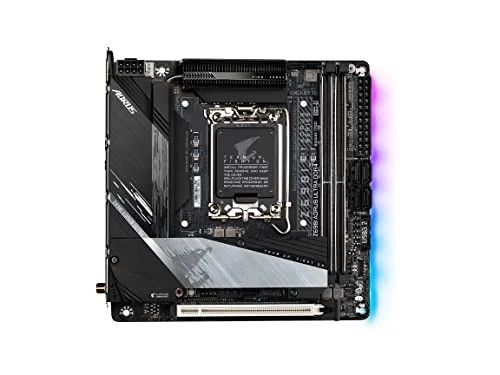

Gigabyte Z690I AORUS ULTRA DDR4 LGA1700 Mini-ITX DDR4 64 GB Motherboard

Gigabyte Motherboard $273.59

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte Z690I AORUS ULTRA DDR4 is a Mini-ITX motherboard for LGA1700. It supports DDR4 memory up to 5333 MT/s (OC).

DDR4 Compatible: Dual Channel Non-ECC Unbuffered DDR4
Commanding Power Design: 10+2+1 Phases Direct VRM Design with 105A Power Stage
Cutting-Edge Thermal Design: Advanced Thermal Solution with Fins Array II and Thermal Guards III
Next Gen Connectivity: PCIe 5.0, Dual NVMe PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C
Fast Networking: WiFi 6 802.11ax, Intel 2.5GbE LAN
Dynamic Audio: AMP-UP Audio with ALC4080 and WIMA
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU

Manufacturer	Gigabyte
Model Number	Z690I AORUS ULTRA DDR4
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-4933 / DDR4-5000 / DDR4-5133 / DDR4-5333 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z690I AORUS ULTRA DDR4
SKU Code	Z690I AORUS ULTRA DDR4
GTIN / EAN	889523030004
