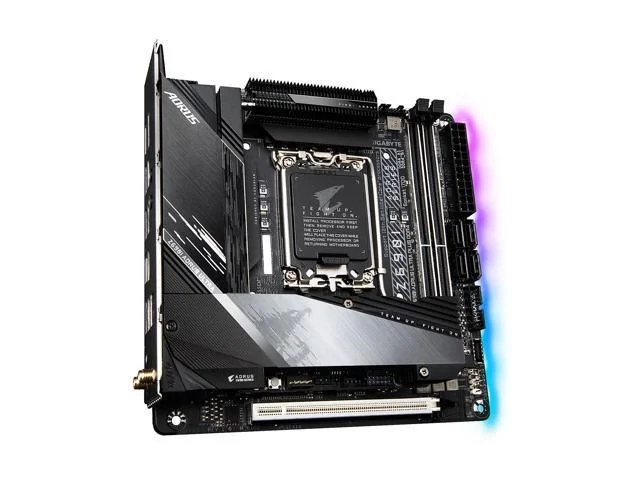

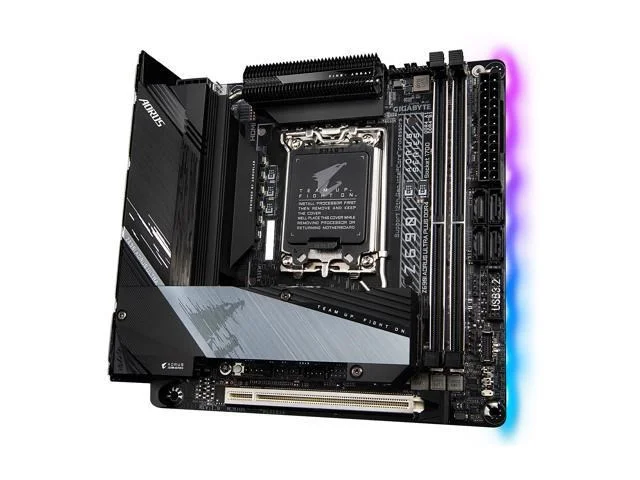

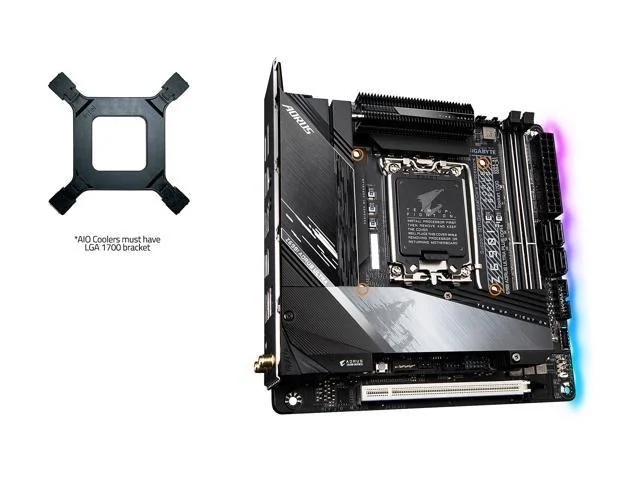

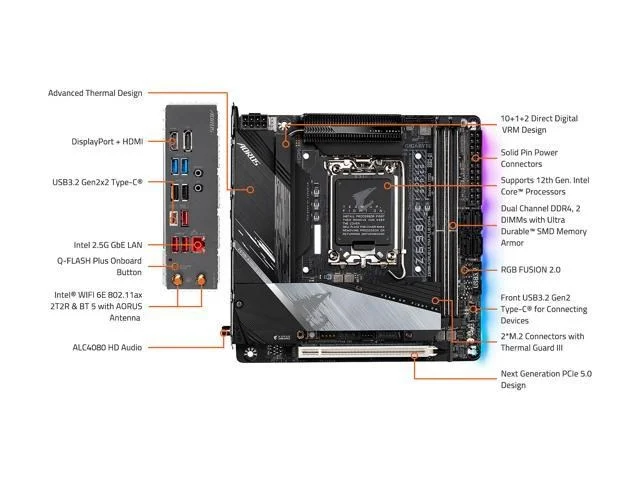

Gigabyte Z690I AORUS ULTRA PLUS DDR4

Gigabyte Z690I AORUS ULTRA PLUS DDR4 LGA1700 Mini-ITX DDR4 64 GB Motherboard

Gigabyte Motherboard $255.59

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Gigabyte Z690I AORUS ULTRA PLUS DDR4 is a Mini-ITX motherboard for LGA1700. It supports DDR4 memory up to 3200 MT/s (OC).

GIGABYTE Z690I AORUS ULTRA PLUS DDR4 LGA 1700 Intel Z690 Mini ITX Intel Motherboard Number of Memory Slots: 2x288pin (DDR4) Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps CPU Type: Core / Pentium / Celeron (12th Gen, LGA1700) Channel Supported: Dual Channel M.2: 2 x M.2 Wireless LAN: Intel WiFi 6E LED Lighting: RGB

Manufacturer	Gigabyte
Model Number	Z690I AORUS ULTRA PLUS DDR4 Z690I AORUS ULTRA PLUS DDR4 (rev. 1.0)
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

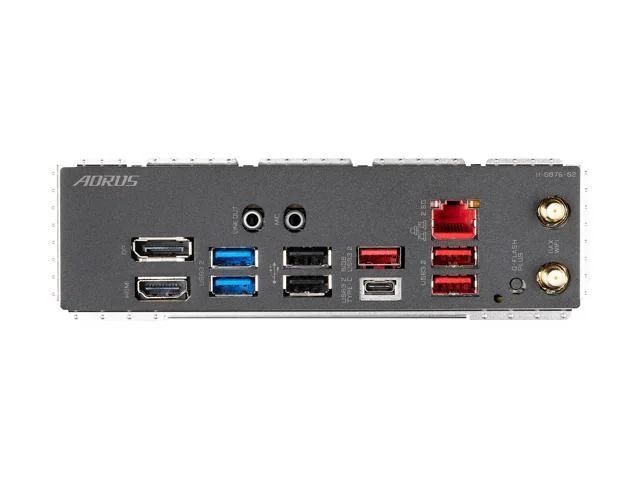

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	0
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z690I AORUS ULTRA PLUS DDR4
SKU Code	Z690I AORUS ULTRA PLUS DDR4
GTIN / EAN	889523032657
