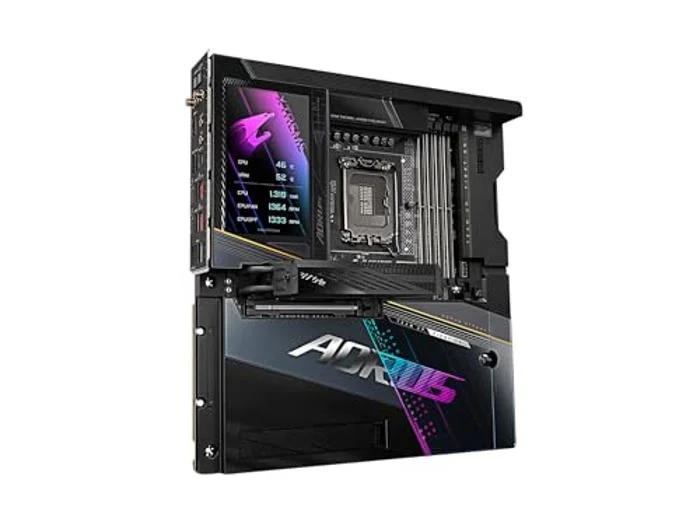

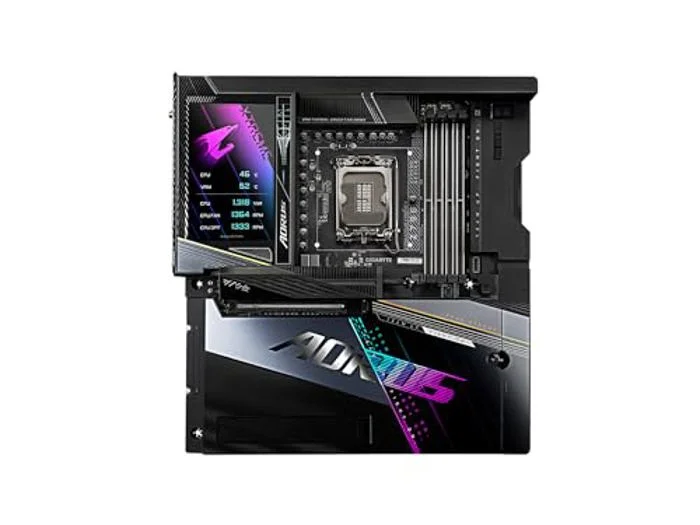

GIGABYTE Z790 AORUS Xtreme X

GIGABYTE Z790 AORUS Xtreme X LGA1700 EATX DDR5 192 GB Motherboard

Gigabyte Motherboard $999.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ790

Form FactorEATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The GIGABYTE Z790 AORUS Xtreme X is a EATX motherboard for LGA1700. It supports DDR5 memory up to 8266 MT/s (OC).

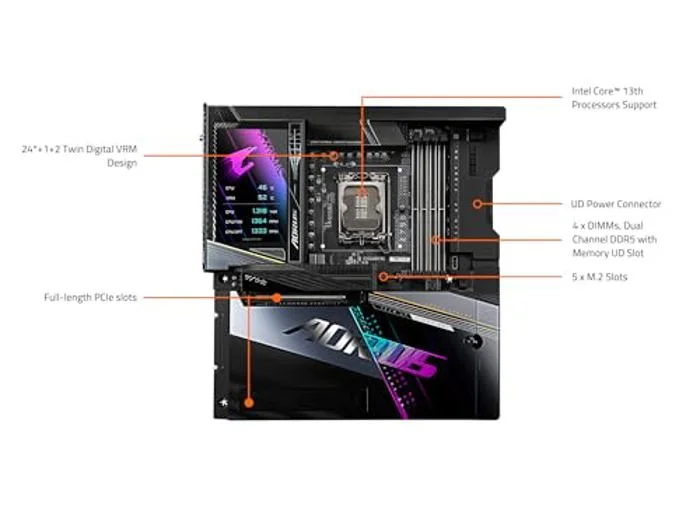

Intel LGA 1700 Socket: Supports 13th and next-gen processors
Dual Channel DDR5: 4*DIMMs with XMP 3.0 memory module support
Commanding Power Design: Digital twin 24+1+2 phases VRM solution
Cutting-Edge Thermal Design: VRM Thermal Armor Fins-Array & M.2 Thermal Guard
Ultra-Fast Storage: 5M.2 slots, including 1 PCIe 5.0 x4
Fast Networking: 10GbE + 2.5GbE LAN & Wi-Fi 7
Extended Connectivity: PCIe 5.0, Dual Thunderbolt 4, Dual Front USB-C 20Gb/s
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU

Manufacturer	Gigabyte
Model Number	Z790 AORUS XTREME X
Launch Date	November 2023
CPU Socket	LGA1700
Chipset Model	Intel Z790
Board Size / Form Factor	EATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4000 / DDR5-4800 / DDR5-5200 / DDR5-5333 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-7900 / DDR5-7950 / DDR5-8000 / DDR5-8200 / DDR5-8266 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	5 × M.2
M.2 Device Compatibility	2280 / 25110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key, 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)

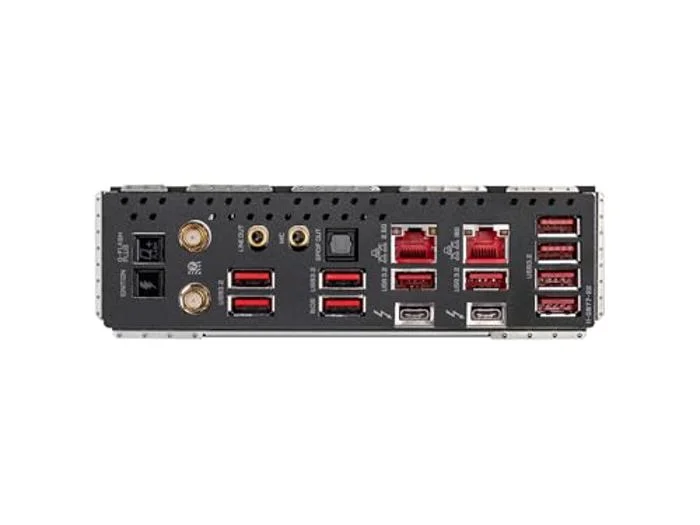

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	2
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z790 AORUS XTREME X
SKU Code	Z790 AORUS XTREME X
GTIN / EAN	889523039434
