GIGABYTE Z790 Eagle AX

GIGABYTE Z790 Eagle AX LGA1700 ATX DDR5 192 GB Motherboard

Gigabyte Motherboard $169.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ790

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

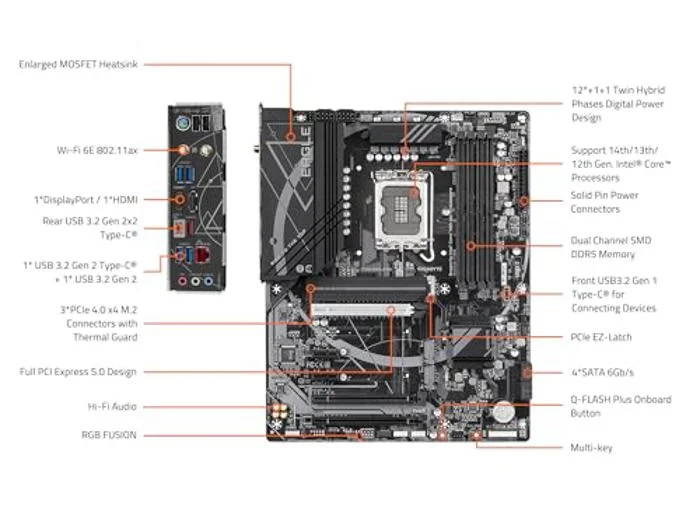

The GIGABYTE Z790 Eagle AX is a ATX motherboard for LGA1700. It supports DDR5 memory up to 7400 MT/s (OC).

Intel LGA 1700 Socket: Supports 14th and 13th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
Sturdy Power Design: Twin 12*+1+1 Phases Digital VRM Solution
Comprehensive Thermal Design: Advanced Thermal Design, Enlarged MOSFET Heatsinks, M.2 Thermal Guard
Next Gen Connectivity: PCIe 5.0, NVMe M.2, USB 3.2 Gen 2x2 Type-C

Manufacturer	GIGABYTE
Model Number	Z790 EAGLE AX
Launch Date	January 2024
CPU Socket	LGA1700
Chipset Model	Intel Z790
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 / 22110 - M Key, 2280 - M Key, 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

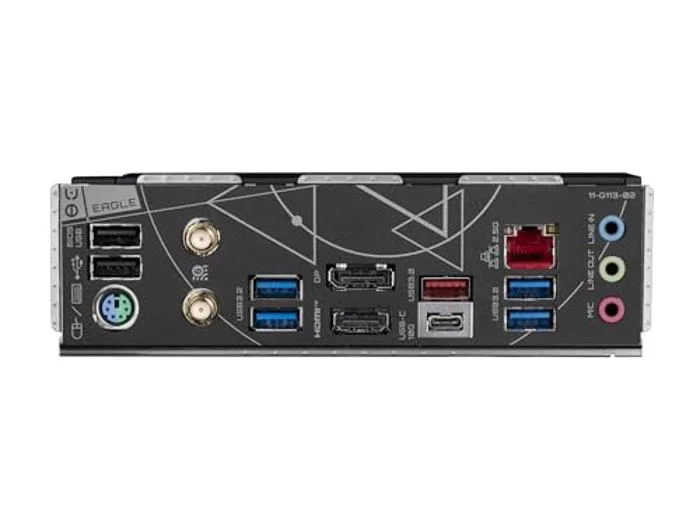

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z790 EAGLE AX
SKU Code	Z790 EAGLE AX
GTIN / EAN	889523042120
