GIGABYTE Z790I AORUS Ultra

GIGABYTE Z790I AORUS Ultra LGA1700 Mini-ITX DDR5 96 GB Motherboard

Gigabyte Motherboard $334.18

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ790

Form FactorMini-ITX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The GIGABYTE Z790I AORUS Ultra is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 7800 MT/s (OC).

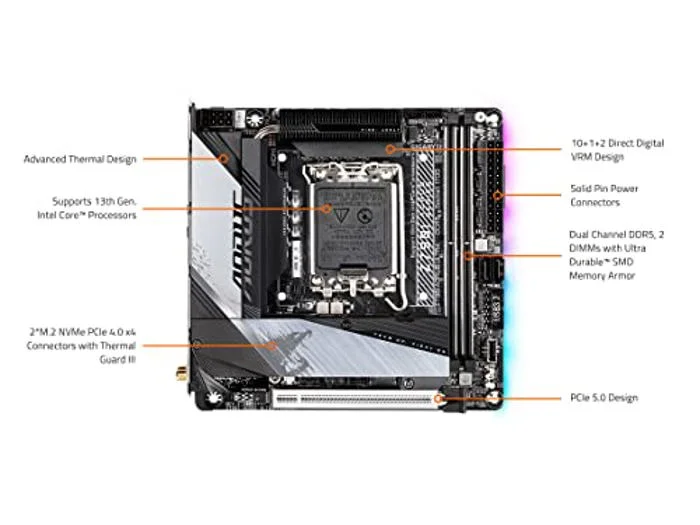

Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel DDR5
Commanding Power Design: 10+1+2 Direct Digital VRM Solution with 105A Smart Power Stage
Cutting-Edge Thermal Design: Thermal Guard III, Fins Array II, 2X Copper PCB, Ultra Durable SMD Memory Armor
Next Gen Connectivity: PCIe 5.0, 2* PCIe 4.0 M.2, USB 3.2 Gen 2x2 Type-C
Fast Networking: Intel 2.5GbE LAN, Intel Killer WiFi 6E 802.11ax
Dynamic Audio: Realtek ALC 4080 Audio
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU

Manufacturer	Gigabyte
Model Number	Z790I AORUS ULTRA
Launch Date	March 2023
CPU Socket	LGA1700
Chipset Model	Intel Z790
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR5
DIMM Slots	2
Maximum RAM Capacity	96 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2280 - M Key
SATA III Ports	2 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

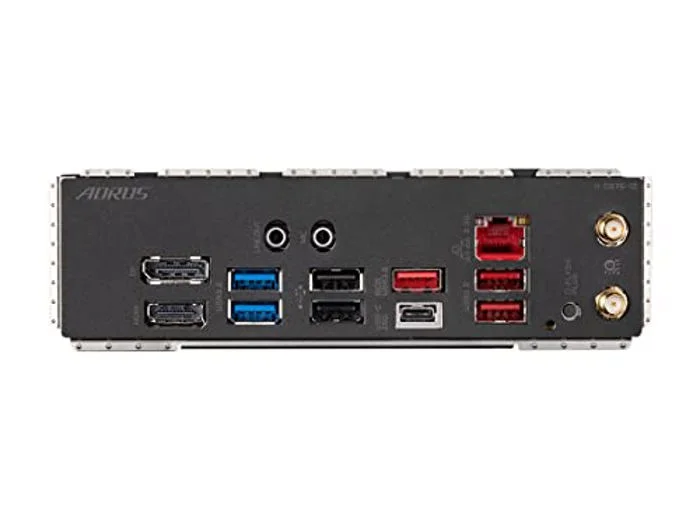

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z790I AORUS ULTRA
SKU Code	Z790I AORUS ULTRA
GTIN / EAN	889523036952
