GIGABYTE Z790M AORUS Elite AX ICE

GIGABYTE Z790M AORUS Elite AX ICE LGA1700 Micro-ATX DDR5 192 GB Motherboard

Gigabyte Motherboard $199.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ790

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

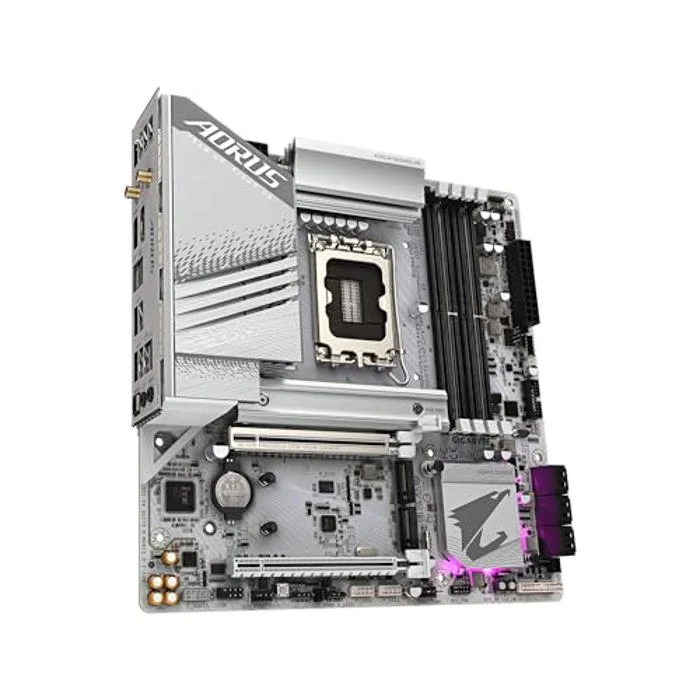

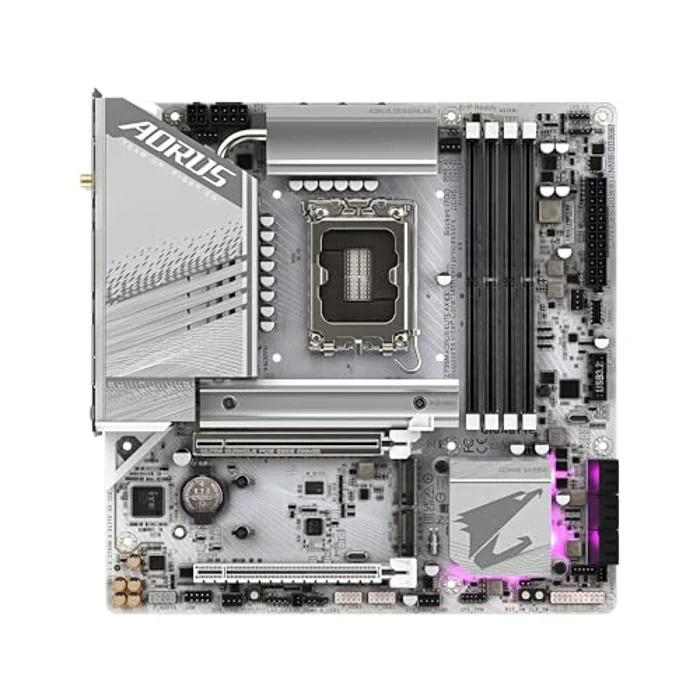

The GIGABYTE Z790M AORUS Elite AX ICE is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 7600 MT/s (OC).

Intel LGA 1700 Socket: Supports 14th and 13th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel DDR5
Commanding Power Design: Twin 12+1+1 Phases Digital VRM Solution
Cutting-Edge Thermal Design: M.2 Thermal Guard, Advanced Thermal Design, 6-Layer PCB

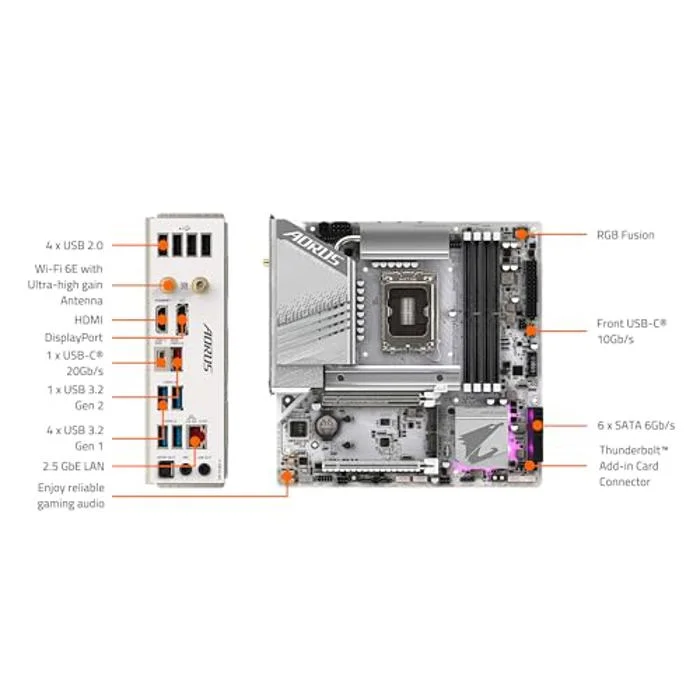

Next Gen Connectivity:3*PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C
EZ-Latch: M.2 connectors with a Quick Release & Screwless Design
Fast Networking: 2.5GbE LAN, Intel WiFi 6E
Fine Tuning Features: Smart Fan 6, Q-Flash Plus - Update BIOS without installing CPU, Memory, and GPU

Manufacturer	GIGABYTE
Model Number	Z790M AORUS ELITE AX ICE
Launch Date	April 2024
CPU Socket	LGA1700
Chipset Model	Intel Z790
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4000 / DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

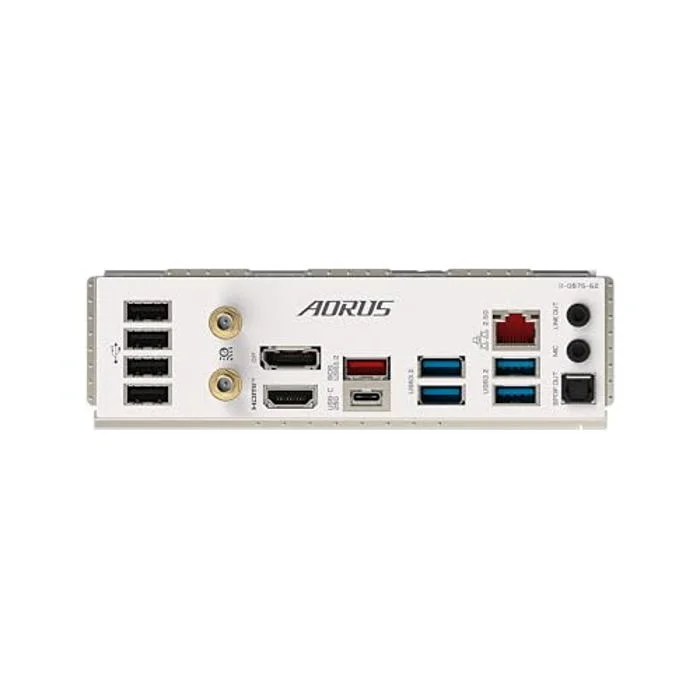

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z790M AORUS ELITE AX ICE
SKU Code	Z790M AORUS ELITE AX ICE
GTIN / EAN	889523041857
