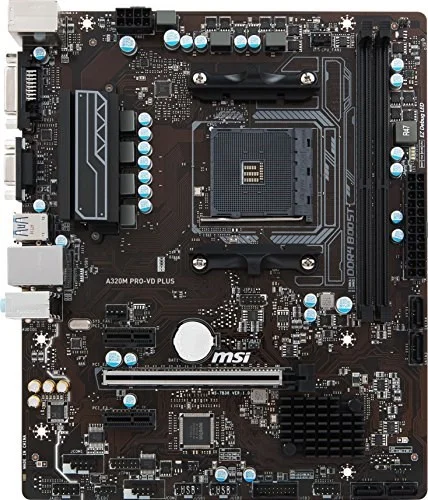

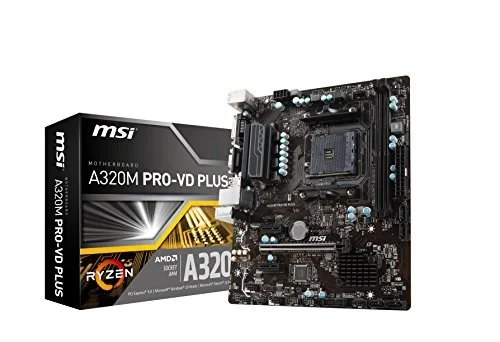

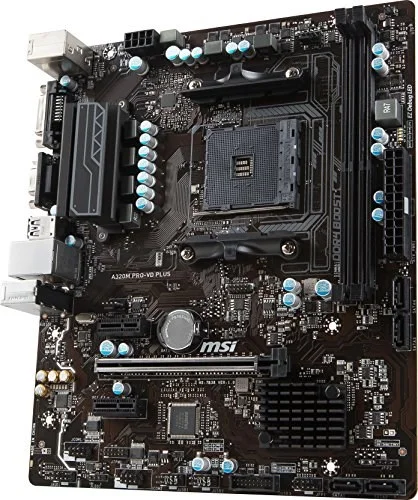

MSI A320M PRO-VD PLUS

MSI A320M PRO-VD PLUS AM4 Micro-ATX DDR4 32 GB Motherboard

MSI Motherboard $84.75

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetA320

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI A320M PRO-VD PLUS is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).

Supports AMD RYZEN series processors and 7th Gen A-series / Athlon Processors for socket AM4
Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz
DDR4 Boost: Give your DDR4 memory a performance boost
VR Ready: Best virtual reality game experience without latency
Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience
EZ Debug LED: Easiest way to troubleshoot
X-Boost: Great tool to boost your USB & Storage performance
Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
WHQL certified for Windows 10

Manufacturer	MSI
Model Number	A320M PRO-VD PLUS
Launch Date	August 2017
CPU Socket	AMD Socket AM4
Chipset Model	Intel A320
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	32 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	0 × M.2
M.2 Device Compatibility	N/A
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	A320M PRO-VD PLUS
SKU Code	A320M PRO-VD PLUS
GTIN / EAN	824142149607
