Colorful CVN B460I GAMING FROZEN V20

Colorful CVN B460I GAMING FROZEN V20 LGA1200 Mini-ITX DDR4 64 GB Motherboard

Colorful Motherboard $169.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetB460

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Colorful CVN B460I GAMING FROZEN V20 is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).

【Intel Chipset & LGA1200 Socket】Supports 10Th Generation Intel Core Processors (Comet Lake-S Series) Designed To Release The Maximum Performance For Gaming.
【High Performance Gaming Networking】 On-Board Intel Core Wifi 6, Equipped With Intel AX200 Wi-Fi6 Wireless LAN. (Realtek RTL8111H LAN Guard Intel 1Gb Internet).

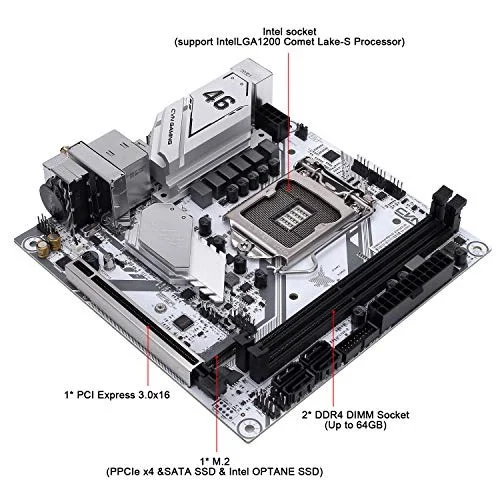

【 Boosted Memory Performance】Maxium Memory Capacity Up To 64GB. 2 DIMM Slots,Support Dual Channel DDR4-2933/2800/2666/2400/2133 Mhz.
【Optimized Thermal & Appearance Designed】High Thermal Conductivity Materials To Enhance The Heat Dissipation Of Power, Memory; And Cool Snow-White Apparence PCB Technology, Make Stronger Sense Of Design To This ITX Gaming Motherboard.
【Diversification Connective Ports】Support SATA & Pcie X4 & Intel OPTANE SSD And 2242/2280 Size SSD; 4X USB2.0 & 6X USB3.2 Gen1 Ports.
【Postive Service & Warranty】All Products Provide 36 Months Non-Human-Damaged Warranty, We’re Pround For Our Quality & Service, Please Feel Confident Order From Segotep.

Manufacturer	Colorful
Model Number	CVN B460I GAMING FROZEN V20
Launch Date	January 2021
CPU Socket	LGA1200
Chipset Model	Intel B460
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A

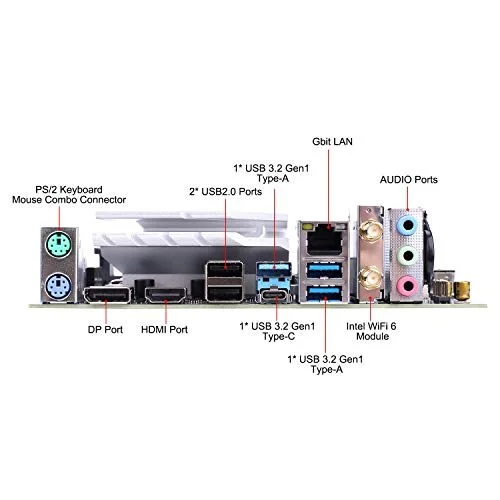

Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	CVN B460I GAMING FROZEN V20
SKU Code	CVN B460I GAMING FROZEN V20
GTIN / EAN	769773320721
