MSI Arsenal Gaming B450M Bazooka V2

MSI Arsenal Gaming B450M Bazooka V2 AM4 Micro-ATX DDR4 64 GB Motherboard

MSI Motherboard $210

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

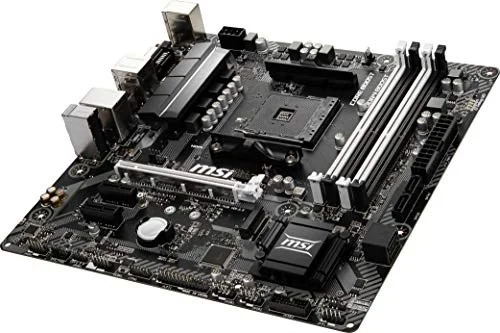

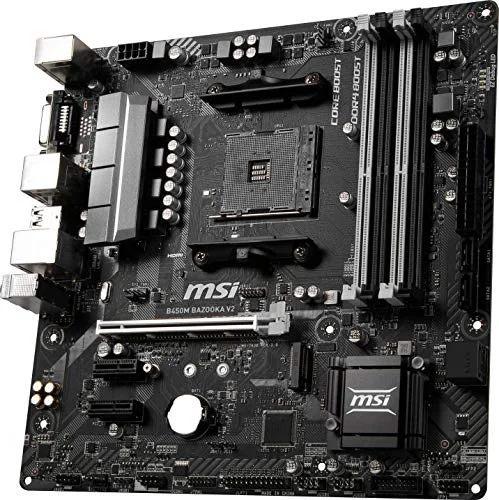

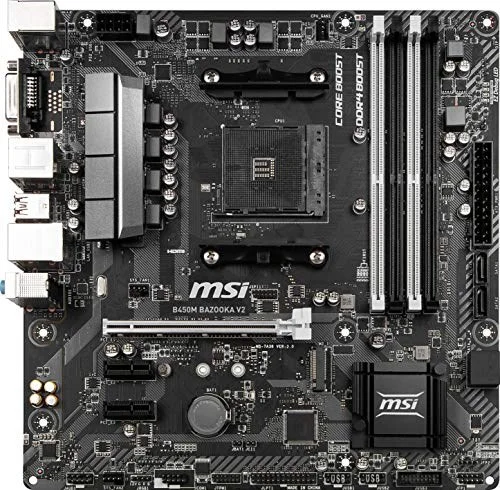

The MSI Arsenal Gaming B450M Bazooka V2 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3466 MT/s (OC).

Supports AMD RYZEN 1st and 2nd generation/Ryzen with Radeon Vega Graphics processors for Socket AM4
Supports DDR4 Memory, up to 3466+(oc) MHz
Lightning fast game experience: 1x Turbo M.2, Store mi technology
DDR4 Boost: advanced technology to deliver pure data signals for the best gaming performance and stability
Audio Boost: reward your ears with studio grade sound quality for the most immersive audio experience

Manufacturer	MSI
Model Number	B450M BAZOOKA V2
Launch Date	February 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450M BAZOOKA V2
SKU Code	B450M BAZOOKA V2
GTIN / EAN	824142174586
