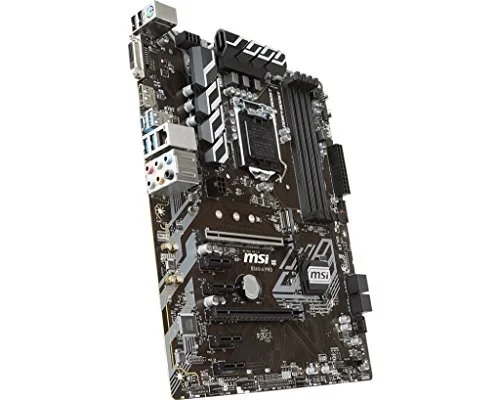

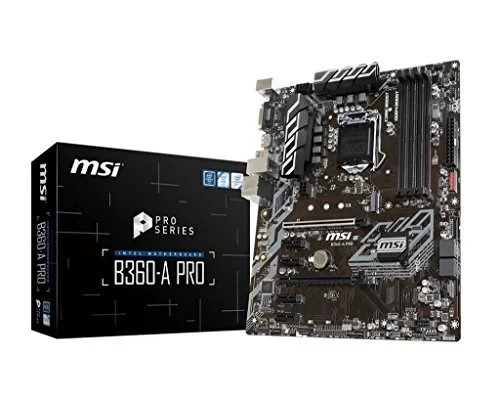

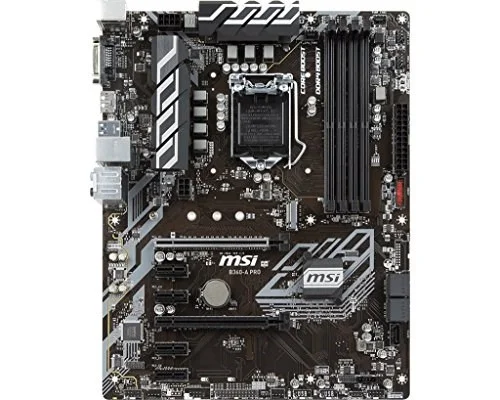

MSI B360-A PRO

MSI B360-A PRO LGA1151 ATX DDR4 64 GB Motherboard

MSI Motherboard $95.94

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetB360

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI B360-A PRO is a ATX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).

Brand MSI , Model B360APRO
Product Type: Desktop Motherboard, Chipset Manufacturer: Intel, Total Processor Supported: 1, Processor Socket: Socket H4 LGA-1151, Processor Supported: Core i7,
Processor Supported: Pentium Gold, Processor Supported: Core i5, Processor Supported: Celeron, Processor Supported: Core i3,
Number of Memory Slots: 4, Memory Form Factor: UDIMM, Memory Form Factor: DIMM, Maximum Memory: 64 GB, Memory Technology: DDR4 SDRAM, Memory Speed Supported: 2.67 GHz,
Memory Speed Supported: 2.13 GHz, Memory Speed Supported: 2.40 GHz, Intel Optane Memory Ready: Yes, Controller Type: Serial ATA/600, Onboard Video: CPU Dependent Video,

Manufacturer	MSI
Model Number	B360-A PRO
Launch Date	May 2018
CPU Socket	LGA1151
Chipset Model	Intel B360
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 4 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	4
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	5 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B360-A PRO
SKU Code	B360-A PRO
GTIN / EAN	824142159170
