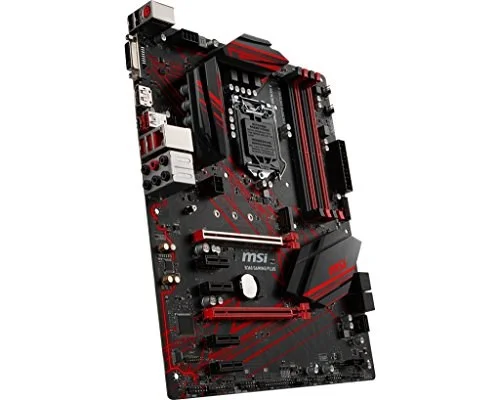

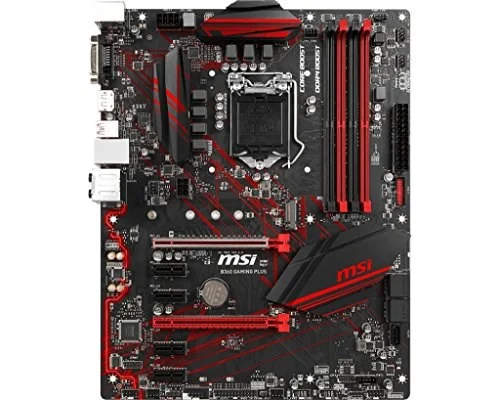

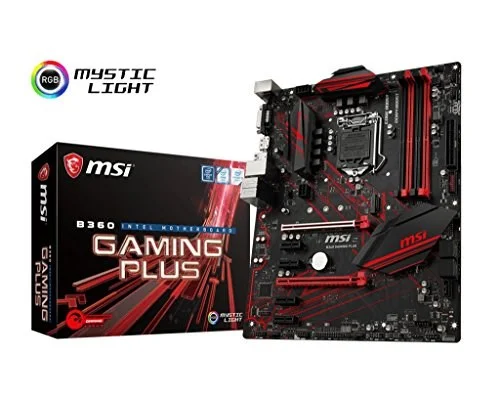

MSI B360 GAMING PLUS

MSI B360 GAMING PLUS LGA1151 ATX DDR4 64 GB Motherboard

MSI Motherboard $108.45

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetB360

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI B360 GAMING PLUS is a ATX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).

Supports 8th Gen Intel Core/Pentium Gold/Celeron Processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666MHz
DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire
EZ Debug LED: Easiest way to troubleshoot

Manufacturer	MSI
Model Number	B360 GAMING PLUS
Launch Date	May 2018
CPU Socket	LGA1151
Chipset Model	Intel B360
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 4 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	4
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	5 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B360 GAMING PLUS
SKU Code	B360 GAMING PLUS
GTIN / EAN	824142159446
