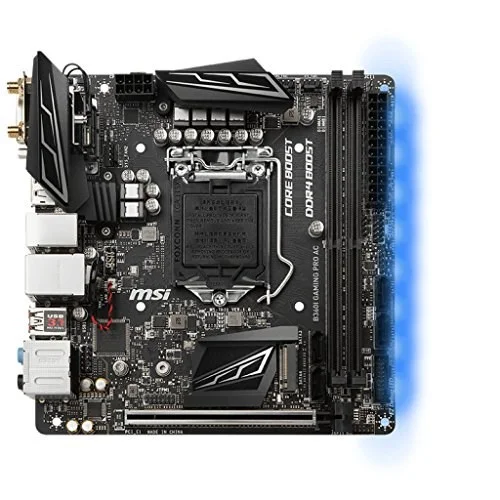

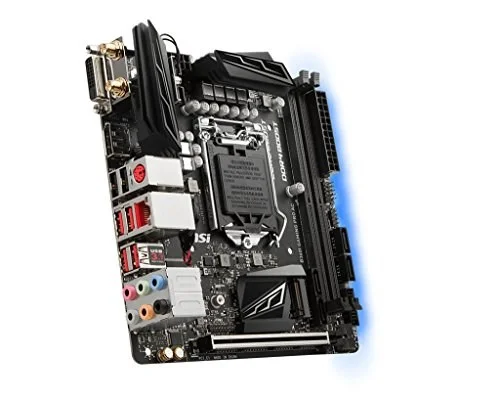

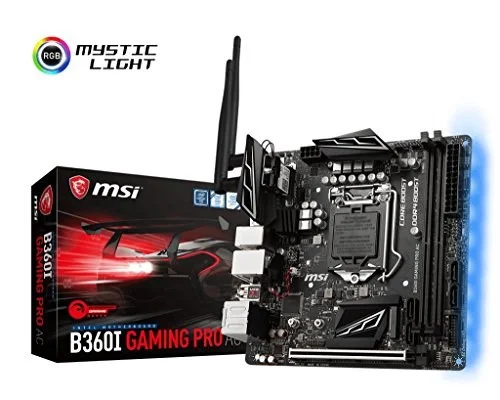

MSI B360I GAMING PRO AC

MSI B360I GAMING PRO AC LGA1151 Mini-ITX DDR4 32 GB Motherboard

MSI Motherboard $153

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetB360

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI B360I GAMING PRO AC is a Mini-ITX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).

Supports 8th Gen Intel Core/Pentium Gold/Celeron Processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666MHz
Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Intel Turbo USB 3.1 Gen2
Intel Wireless Support: Uses smart MU-MIMO technology, delivering AC speeds up to 433Mbps with lower CPU loading and better long-term usage
GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players

Manufacturer	MSI
Model Number	B360I GAMING PRO AC
Launch Date	N/A
CPU Socket	LGA1151
Chipset Model	Intel B360
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	32 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B360I GAMING PRO AC
SKU Code	B360I GAMING PRO AC
GTIN / EAN	824142162040
