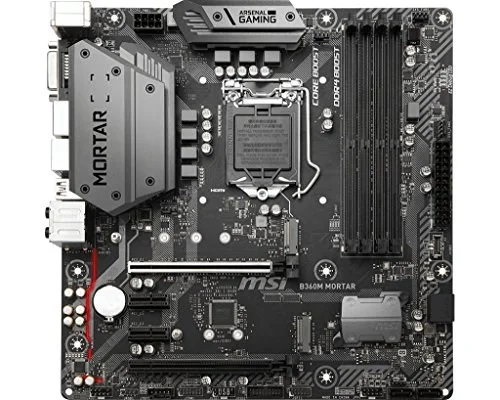

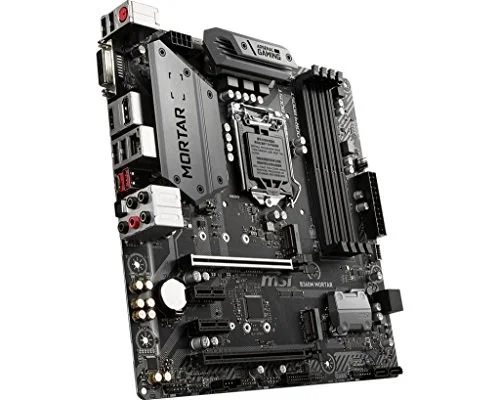

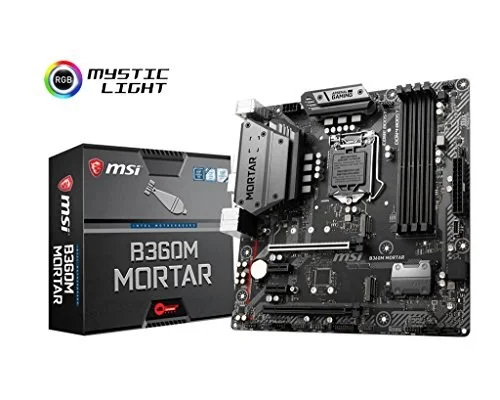

MSI B360M MORTAR

MSI B360M MORTAR LGA1151 Micro-ATX DDR4 64 GB Motherboard

MSI Motherboard $250

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetB360

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI B360M MORTAR is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).

Supports 8th Gen Intel Core/Pentium Gold/Celeron Processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666MHz
Twin Turbo M.2: With 2 x M.2 slots. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience
MULTI-GPU: With STEEL ARMOR PCI-E slot. Supports 2-Way AMD Crossfire

Manufacturer	MSI
Model Number	B360M MORTAR
Launch Date	May 2018
CPU Socket	LGA1151
Chipset Model	Intel B360
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B360M MORTAR
SKU Code	B360M MORTAR
GTIN / EAN	824142159453
