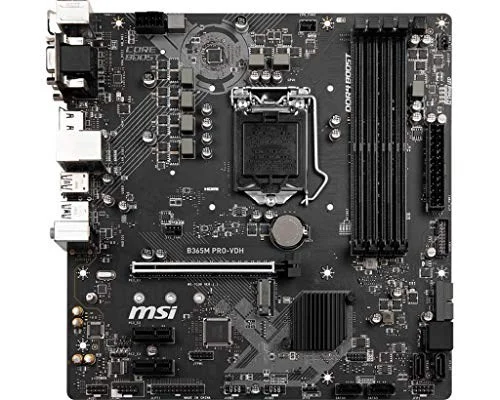

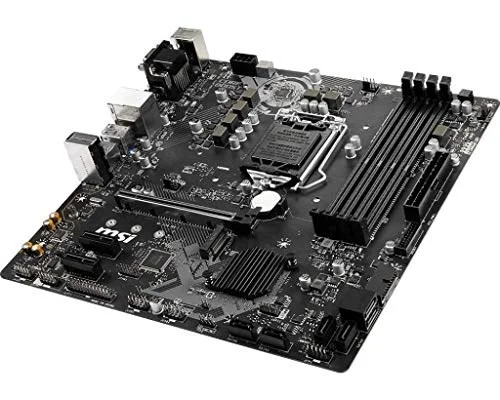

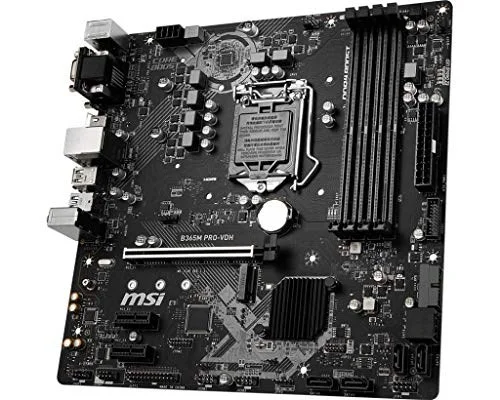

MSI B365M PRO-VDH

MSI B365M PRO-VDH LGA1151 Micro-ATX DDR4 64 GB Motherboard

MSI Motherboard $111.1

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetB365

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI B365M PRO-VDH is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).

Supports 9Th/8Th Gen Intel Core/Pentium Gold/Celeron Processors For LGA 1151 Socket
Supports DDR4 Memory, Up To 2666 Mhz
Turbo M.2: Running At PCI-E Gen3 X4 Maximizes Performance For Nvme Based Ssds
Core Boost: With Premium Layout And Fully Digital Power Design To Support More Cores And Provide Better Performance
Audio Boost: Reward Your Ears With Studio Grade Sound Quality

Manufacturer	MSI
Model Number	B365M PRO-VDH 7C39-001R
Launch Date	October 2019
CPU Socket	LGA1151
Chipset Model	Intel B365
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B365M PRO-VDH
SKU Code	B365M PRO-VDH
GTIN / EAN	824142189931
