MSI B450-A PRO MAX

MSI B450-A PRO MAX AM4 ATX DDR4 128 GB Motherboard

MSI Motherboard $89.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

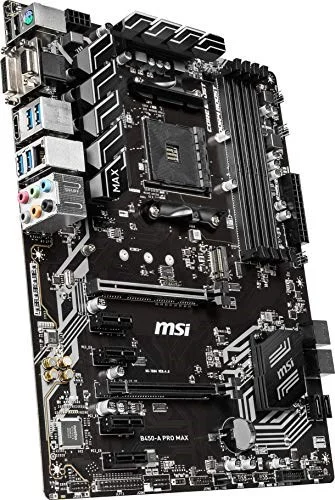

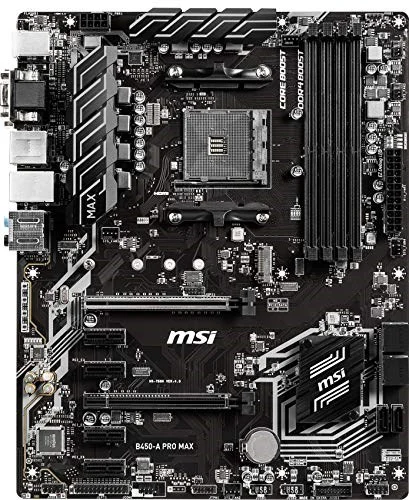

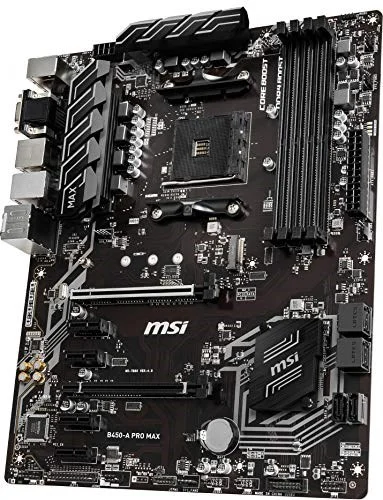

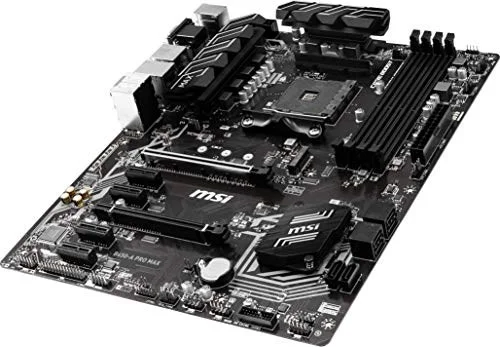

The MSI B450-A PRO MAX is a ATX motherboard for AM4. It supports DDR4 memory up to 4133 MT/s (OC).

Supports 1St, 2Nd And 3Rd Gen AMD Ryzen/ Ryzen With Radeon Vega Graphics And 2Nd Gen AMD Ryzen With Radeon Graphics/ Athlon With Radeon Vega Graphics Desktop Processors For Socket AM4
Supports DDR4 Memory, Up To 4133(OC) Mhz
Turbo M.2: Running At PCI-E Gen3 X4 Maximizes Performance For Nvme Based Ssds
Flash BIOS Button: Simply Use A USB Key To Flash Any Bios Within Seconds, Without Installing A CPU, Memory Or Graphics Card
Multi-Gpu: With Steel Armor PCI-E Slots. Supports 2-Way AMD Crossfire

Manufacturer	MSI
Model Number	B450-A PRO MAX
Launch Date	September 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 4 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	4
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A

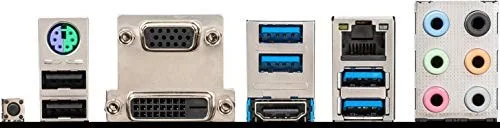

Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450-A PRO MAX
SKU Code	B450-A PRO MAX
GTIN / EAN	824142194447
