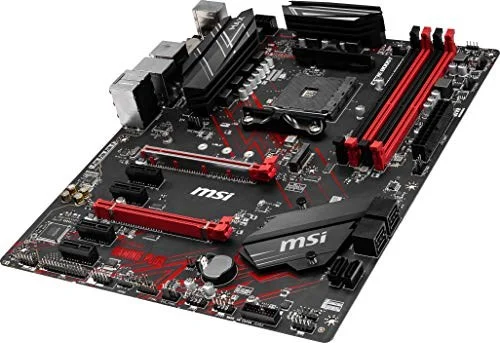

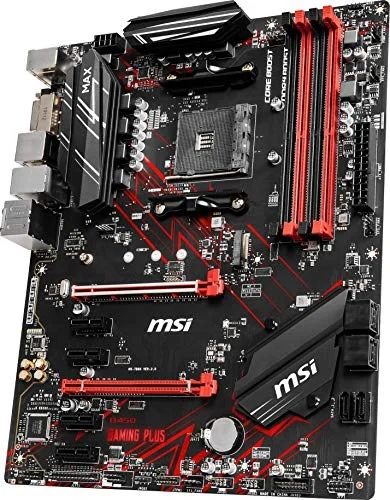

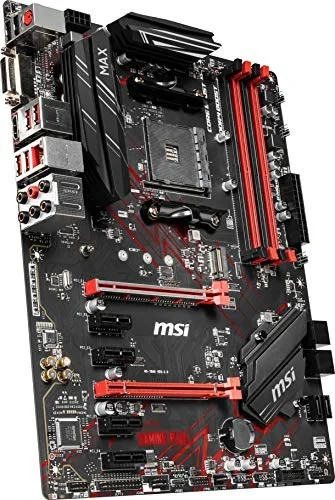

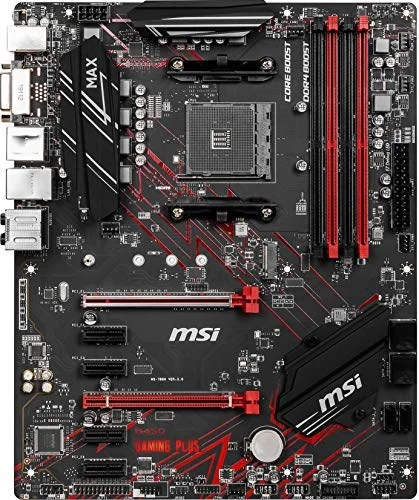

MSI B450 GAMING PLUS MAX

MSI B450 GAMING PLUS MAX AM4 ATX DDR4 128 GB Motherboard

MSI Motherboard $79.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI B450 GAMING PLUS MAX is a ATX motherboard for AM4. It supports DDR4 memory up to 4133 MT/s (OC).

Supports 1st, 2nd And 3rd Gen AMD Ryzen/ Ryzen With Radeon Vega Graphics And 2Nd Gen AMD Ryzen With Radeon Graphics/ Athlon With Radeon Vega Graphics Desktop Processors For Socket AM4
Supports DDR4 Memory, Up To 4133(OC) Mhz
Lightning Fast Game Experience: Turbo M.2, AMD Turbo USB 3.2 Gen2, Storemi Technology
DDR4 Boost: Advanced Technology To Deliver Pure Data Signals For The Best Gaming Performance And Stability
Audio Boost: Reward Your Ears With Studio Grade Sound Quality For The Most Immersive Gaming Experience

Manufacturer	MSI
Model Number	B450 Gaming Plus MAX B450-GAMING-PLUS-MAX
Launch Date	September 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 4 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	4
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A

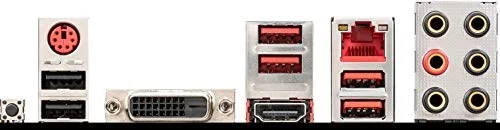

Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450 Gaming Plus MAX
SKU Code	B450 Gaming Plus MAX
GTIN / EAN	824142189696
