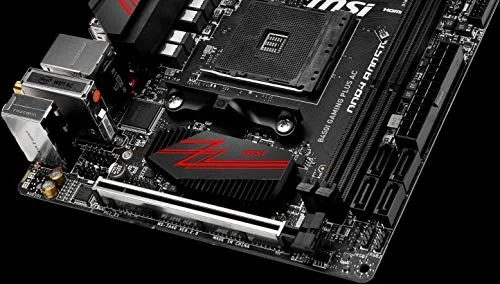

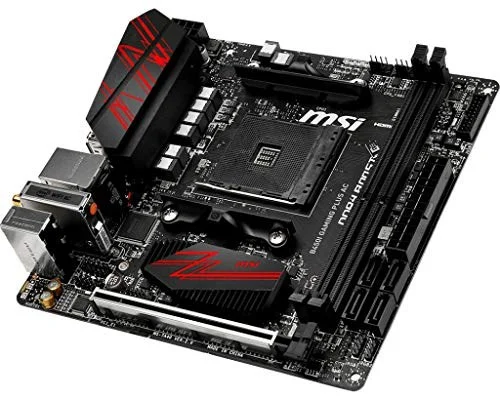

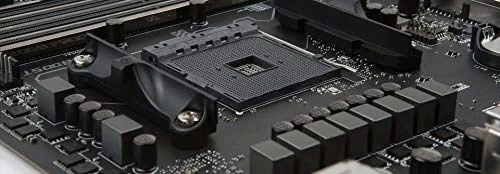

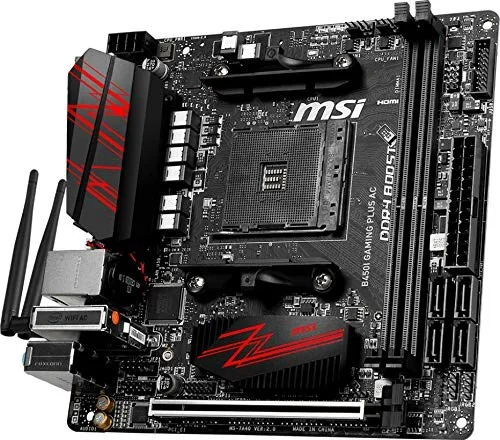

MSI B450I GAMING PLUS MAX WIFI

MSI B450I GAMING PLUS MAX WIFI AM4 Mini-ITX DDR4 64 GB Motherboard

MSI Motherboard $129.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI B450I GAMING PLUS MAX WIFI is a Mini-ITX motherboard for AM4. It supports DDR4 memory up to 3466 MT/s (OC).

Supports 1St, 2Nd And 3Rd Gen AMD Ryzen/Ryzen With Radeon Vega Graphics And 2Nd Gen AMD Ryzen With Radeon Graphics/Athlon With Radeon Vega Graphics Desktop Processors For Socket AM4
Supports DDR4 Memory, Up To 3466(OC) Mhz
Lightning Fast Game Experience: Turbo M.2
Core Boost: With Premium Layout And Digital Power Design To Support More Cores And Provide Better Performance
DDR4 Boost: Give Your DDR4 Memory A Performance Boost With A-XMP

Manufacturer	MSI
Model Number	B450I GAMING PLUS MAX WIFI B450IGPMAXWI
Launch Date	November 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450I GAMING PLUS MAX WIFI
SKU Code	B450I GAMING PLUS MAX WIFI
GTIN / EAN	824142225462
