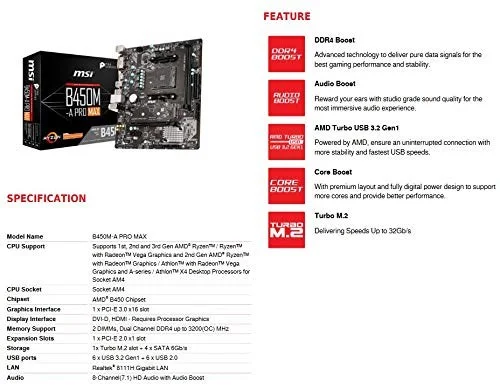

MSI B450M-A PRO MAX

MSI B450M-A PRO MAX AM4 Micro-ATX DDR4 64 GB Motherboard

MSI Motherboard $55.24

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI B450M-A PRO MAX is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4133 MT/s (OC).

Supports DDR4 Memory, Up To 4133 (OC) Mhz
Turbo M.2 : Running At PCI-E Gen3 X4 Maximizes Performance For Nvme Based Ssds.
Core Boost : With Premium Layout And Fully Digital Power Design To Support More Cores And Provide Better Performance
Audio Boost : Reward Your Ears With Studio Grade Sound Quality
X-Boost : Software That Auto-Detects And Allows You To Boost The Performance Of Any Storage Or USB Device

Manufacturer	MSI
Model Number	B450M-A PRO MAX
Launch Date	September 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450M-A PRO MAX
SKU Code	B450M-A PRO MAX
GTIN / EAN	4719072667696
