MSI B450M PRO-M2

MSI B450M PRO-M2 AM4 Micro-ATX DDR4 32 GB Motherboard

MSI Motherboard $100

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

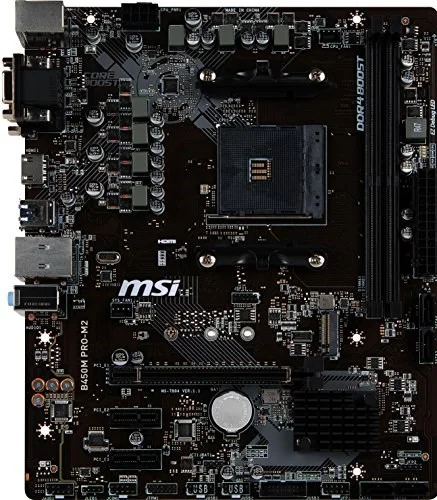

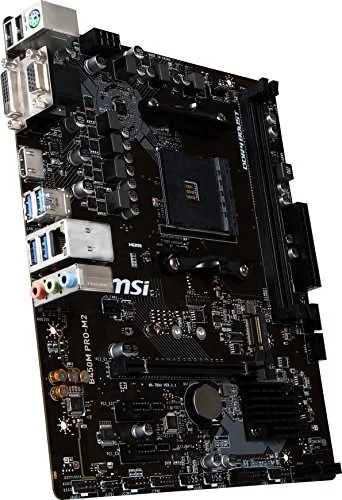

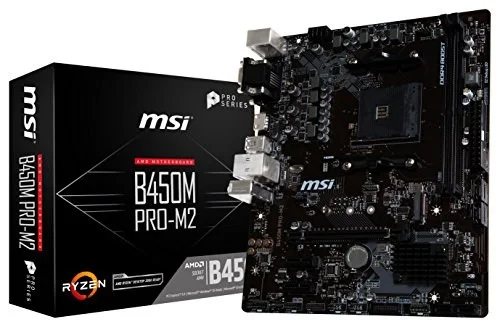

The MSI B450M PRO-M2 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3466 MT/s (OC).

Support AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics Processors for Socket AM4
Supports 32GB Dual Channel DDR4 Memory 1866/ 2133/ 2400/ 2667 MHz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC MODE
VR Ready: Automatically optimizes your system for VR usage, pushing for maximum performance
X-Boost: Great tool to boost your USB & Storage performance
Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience

Manufacturer	MSI
Model Number	B450M PRO-M2
Launch Date	N/A
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	32 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450M PRO-M2
SKU Code	B450M PRO-M2
GTIN / EAN	824142167113
