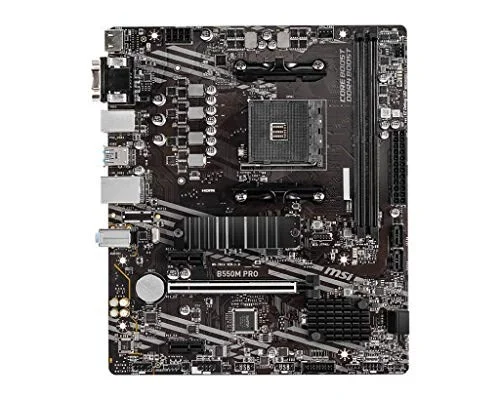

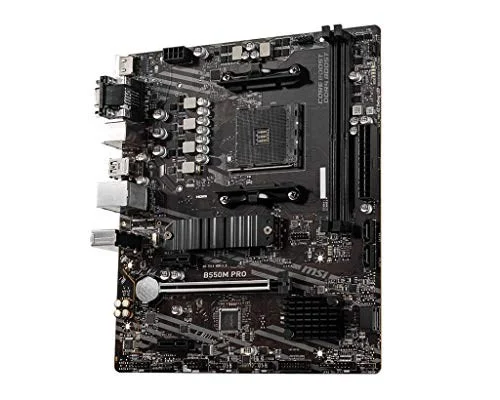

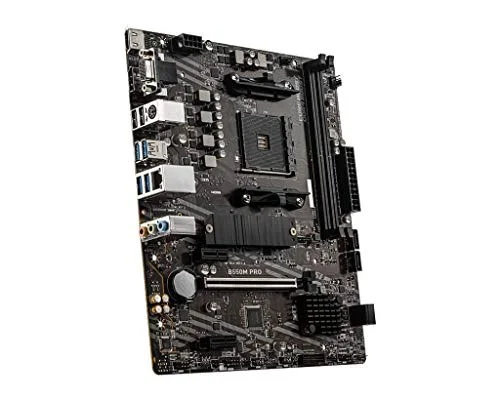

MSI B550M PRO

MSI B550M PRO AM4 Micro-ATX DDR4 64 GB Motherboard

MSI Motherboard $89.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB550

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI B550M PRO is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4600 MT/s (OC).

Support 3Rd Gen AMD Ryzen Desktop Processors And AMD Ryzen 4000 G-Series Desktop Processors
Supports DDR4 Memory, Up To 4600(OC) Mhz
Lightning Fast Experience: Pcie 4.0, Lightning Gen4 X4 M.2 With M.2 Shield Frozr
M.2 Shield Frozr: Strengthened Built-In M.2 Thermal Solution. Keeps M.2 Ssds Safe While Preventing Throttling, Making Them Run Faster
Core Boost: With Premium Layout And Digital Power Design To Support More Cores And Provide Better Performance

Manufacturer	MSI
Model Number	b550m pro
Launch Date	November 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel B550
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	b550m pro
SKU Code	b550m pro
GTIN / EAN	824142225240
