MSI Creator TRX40

MSI Creator TRX40 sTRX4 EATX DDR4 256 GB Motherboard

MSI Motherboard $696.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketsTRX4

ChipsetTRX40

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

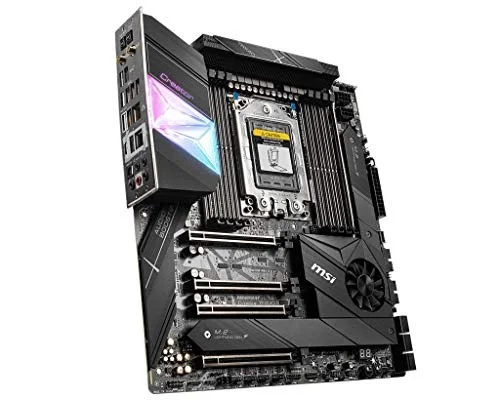

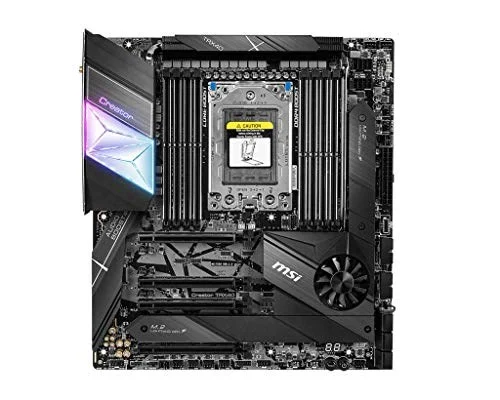

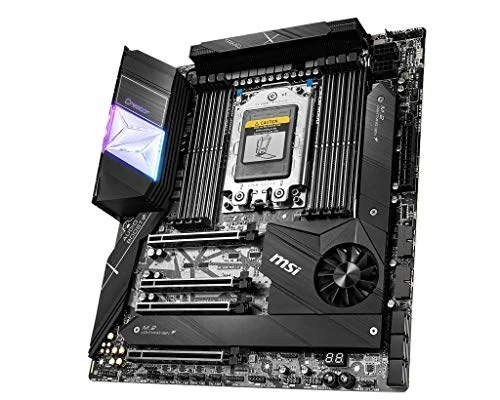

The MSI Creator TRX40 is a EATX motherboard for sTRX4. It supports DDR4 memory up to 4666 MT/s (OC).

Core Boost: With Premium Layout And Fully Digital Power Design To Support More Cores And Provides Better Performance.
10G Super LAN: Next Level Speed, Secure Networking With Fastest Data Throughput To Improve Efficiency.
Wi-Fi 6: The Latest Wireless Solution Supports MU-MIMO And Bss Color Technology, Delivering Speeds Up To 2400Mbps.
Lightning USB 20G: ASM3242 USB 3. 2 Gen2x2 Controller Offers The Fastest USB Speeds With Stability.
Total Thermal Solution: Premium Thermal Design Included Frozr Heatsink, Extended Heatsink And Heat-Pipe.

Manufacturer	MSI
Model Number	Creator TRX40
Launch Date	November 2019
CPU Socket	sTRX4
Chipset Model	TRX40
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3200 / DDR4-3600 / DDR4-4000 / DDR4-4666 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	4 × PCIe x16
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

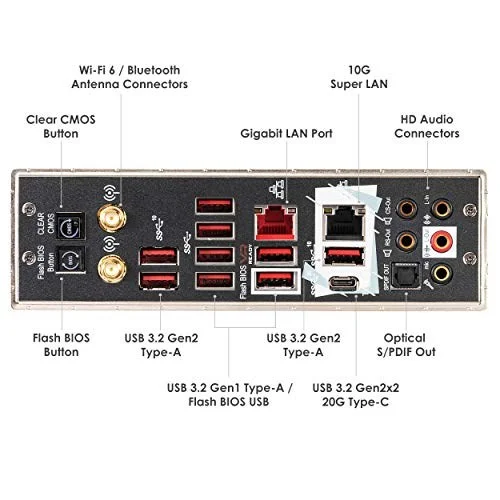

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Creator TRX40
SKU Code	Creator TRX40
GTIN / EAN	824142199428
