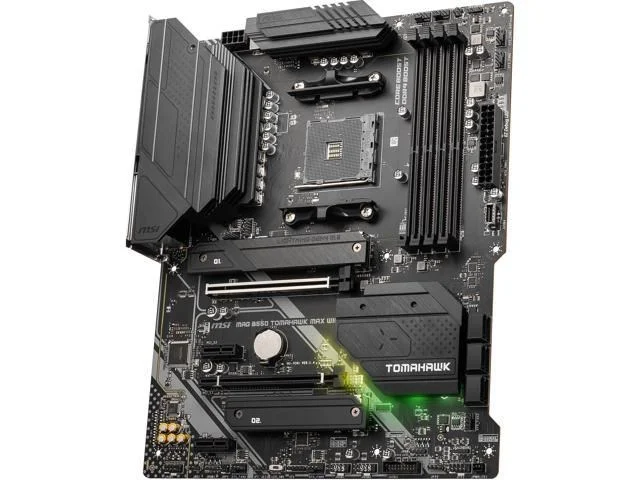

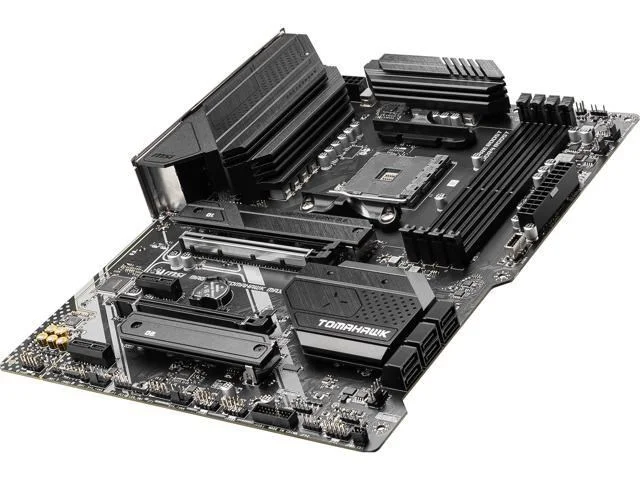

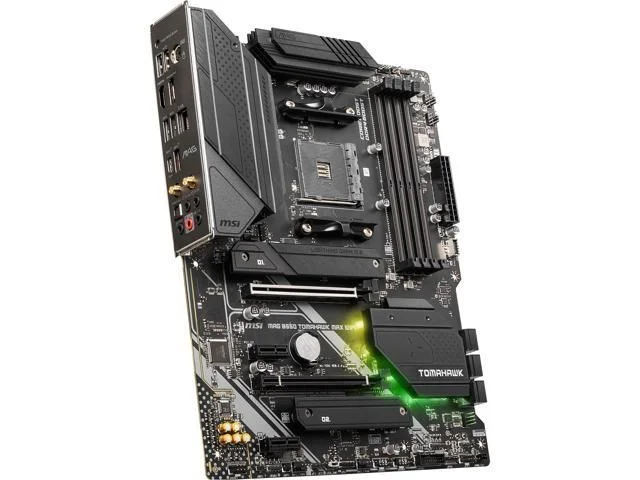

MSI MAG B550 TOMAHAWK MAX WIFI

MSI MAG B550 TOMAHAWK MAX WIFI AM4 ATX DDR4 128 GB Motherboard

MSI Motherboard $135.34

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB550

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MAG B550 TOMAHAWK MAX WIFI is a ATX motherboard for AM4. It supports DDR4 memory up to 5100 MT/s (OC).

MSI MAG B550 TOMAHAWK MAX WIFI AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard Number of Memory Slots: 4x288pin (DDR4) Memory Standard: DDR4 5100+ (OC) PCI Express 3.0 x16: 1 x PCI Express 3.0 x16 Onboard Video Chipset: Supported only by CPU with integrated graphic Audio Chipset: Realtek ALC897 PCI Express x1: 2 x PCI Express 3.0 x1 Audio Channels: 7.1 Channels Max LAN Speed: 10/100/1000/2500Mbps

Manufacturer	MSI
Model Number	MAG B550 TOMAHAWK MAX WIFI
Launch Date	N/A
CPU Socket	AMD Socket AM4
Chipset Model	Intel B550
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4800 / DDR4-4866 / DDR4-5000 / DDR4-5100 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MAG B550 TOMAHAWK MAX WIFI
SKU Code	MAG B550 TOMAHAWK MAX WIFI
GTIN / EAN	824142286685
