MSI MAG B550M BAZOOKA

MSI MAG B550M BAZOOKA AM4 Micro-ATX DDR4 128 GB Motherboard

MSI Motherboard $109.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB550

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

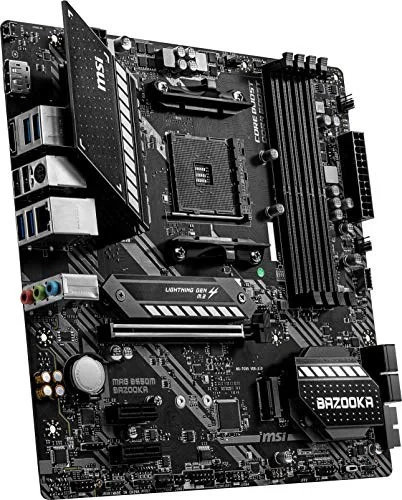

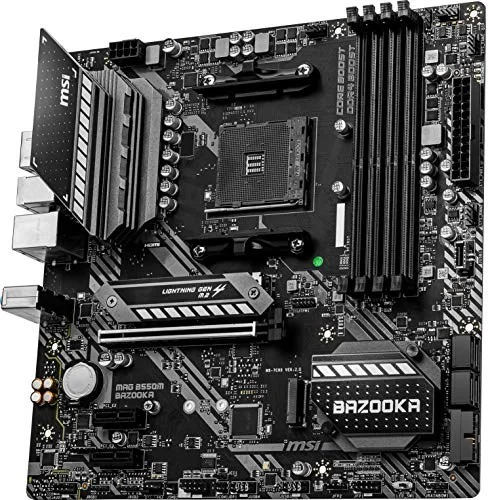

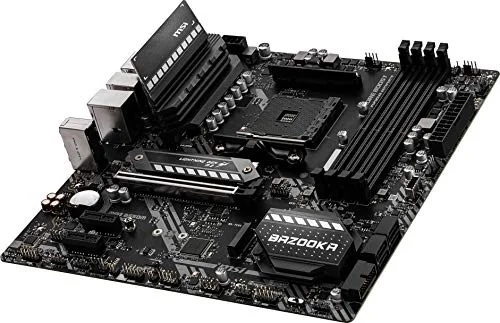

The MSI MAG B550M BAZOOKA is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).

Support For 3Rd Gen AMD Ryzen Processors And Future AMD Ryzen Processors With BIOS Update
Supports Dual Channel DDR4 Memory Up To 128 GB (4400 Mhz)

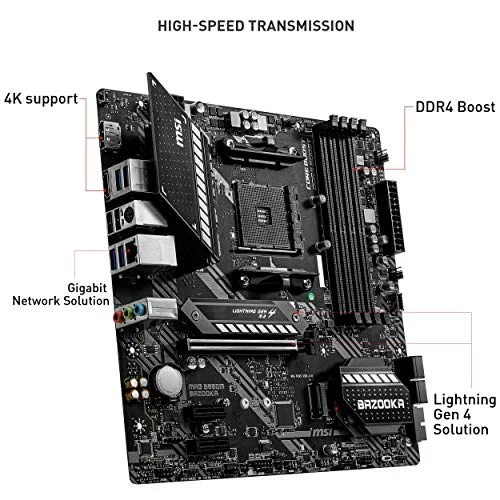

Lightning Fast Game Experience: Pcie 4.0, Lightning Gen 4 M.2 With M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
Core Boost Technology Combines Optimized Power Circuit Layouts And Digital Power Regulation Which Allows For Precise And Steady Current Delivery To The CPU
AUDIO BOOST Rewards Your Ears With Studio Grade Sound Quality For Immersive Gaming Experiences

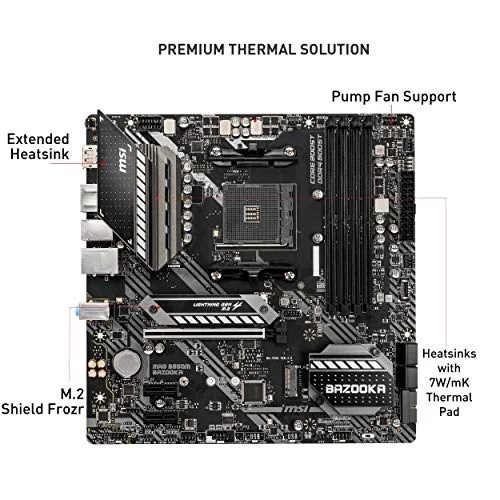

Premium Thermal Solution: Extended Heatsink With Additional Choke Thermal Pad Rated For 7W/Mk And PCB With 2Oz Thickened Copper
Flash BIOS Button Lets Users Flash The BIOS Even Without A CPU Or Memory

Manufacturer	MSI
Model Number	MAG B550M BAZOOKA 7C94-005R
Launch Date	July 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel B550
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MAG B550M BAZOOKA
SKU Code	MAG B550M BAZOOKA
GTIN / EAN	824142219386
