MSI MAG B560M Mortar WiFi

MSI MAG B560M Mortar WiFi LGA1200 Micro-ATX DDR4 128 GB Motherboard

MSI Motherboard $113.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetB560

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

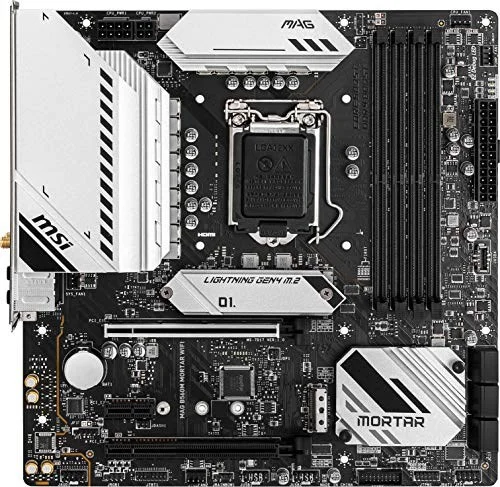

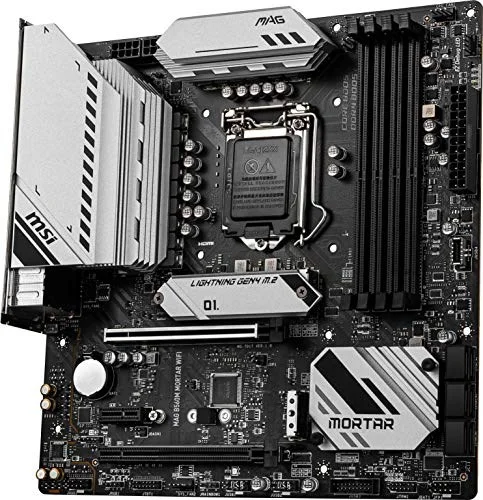

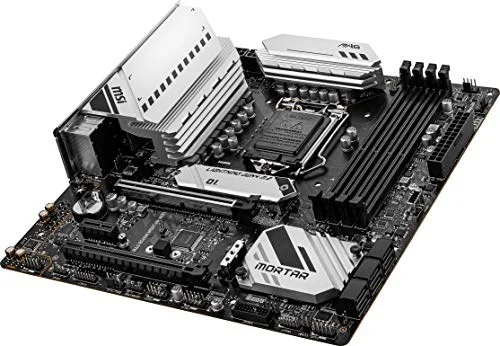

The MSI MAG B560M Mortar WiFi is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 5066 MT/s (OC).

Supports 11Th And 10Th Gen Intel Core/Pentium/Celeron Processors For LGA 1200 Socket
Supports DDR4 Memory
Premium Thermal Solution: Extended Heatsink Design And M.2 Shield Frozr Are Built For High Performance System And Non-Stop Gaming Experience
Turbo M.2: Running At PCI-E Gen3 X4 Maximizes Performance For Nvme Based Ssds

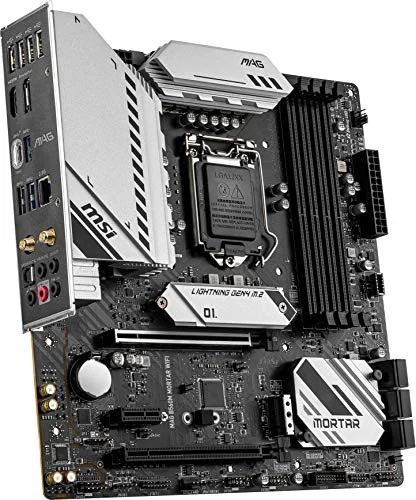

Pre-Installed I/O Shielding: Better EMI Protection And More Convenience For Installation

Manufacturer	MSI
Model Number	MAG B560M MORTAR WIFI
Launch Date	February 2021
CPU Socket	LGA1200
Chipset Model	Intel B560
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4266 / DDR4-4600 / DDR4-5066 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

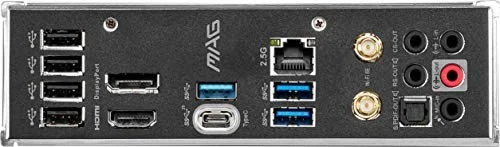

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MAG B560M MORTAR WIFI
SKU Code	MAG B560M MORTAR WIFI
GTIN / EAN	824142243312
