MSI MAG B660 TOMAHAWK WIFI

MSI MAG B660 TOMAHAWK WIFI LGA1700 ATX DDR5 192 GB Motherboard

MSI Motherboard $214

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB660

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

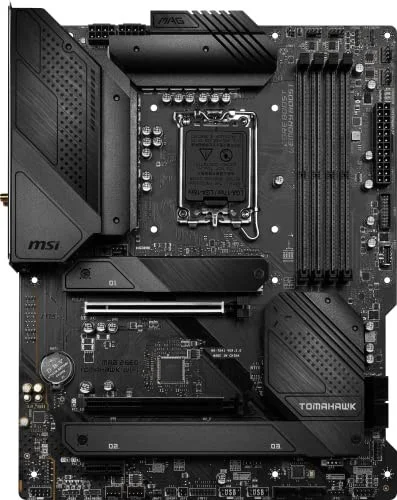

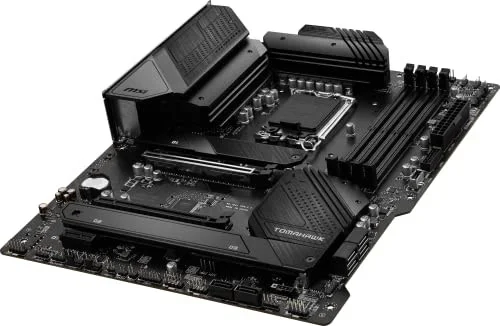

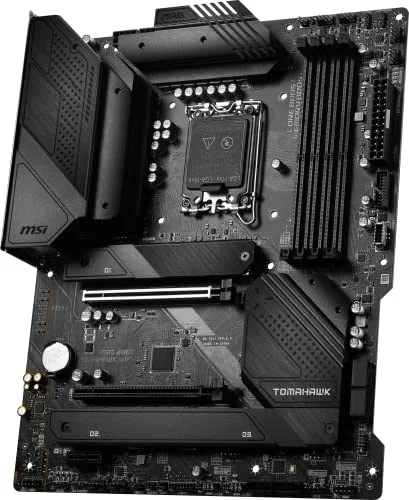

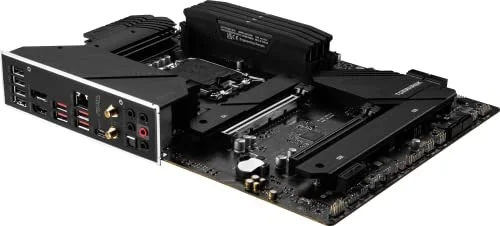

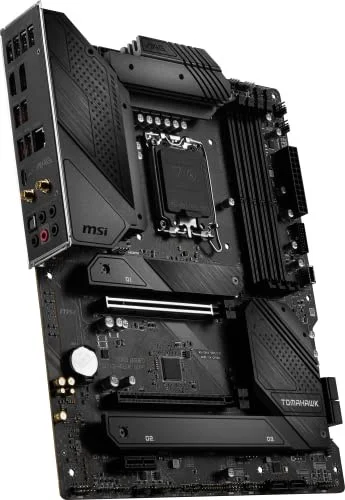

The MSI MAG B660 TOMAHAWK WIFI is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6200 MT/s (OC).

12TH GEN CORE, HIGH PERFORMANCE - The MAG B660 TOMAHAWK WIFI DDR4 employs a 12 Duet Rail Power System (60A, DrMOS) VRM for the Intel B660 chipset (LGA 1700, 12th Gen Core ready) with Core Boost architecture for high CPU core count power demands
INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer PCB with 2 oz. thickened copper
TRIPLE M.2 CONNECTORS - Storage includes 2 x M.2 Gen4 x4 64Gb/s slots and 1 x M.2 Gen4 x2 slot (Intel Optane supported) with Shield Frozr to prevent thermal throttling during hyper-fast SSD access
WI-FI 6 CONNECTIVITY - Network hardware includes an Intel Wi-Fi 6 module with Bluetooth 5.2 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost (supports S/PDIF output)

Manufacturer	MSI
Model Number	MAG B660 TOMAHAWK WIFI 7D41-012R
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel B660
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MAG B660 TOMAHAWK WIFI
SKU Code	MAG B660 TOMAHAWK WIFI
GTIN / EAN	4719072924942
