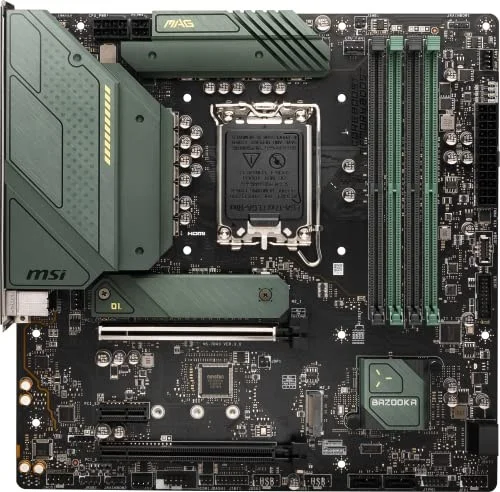

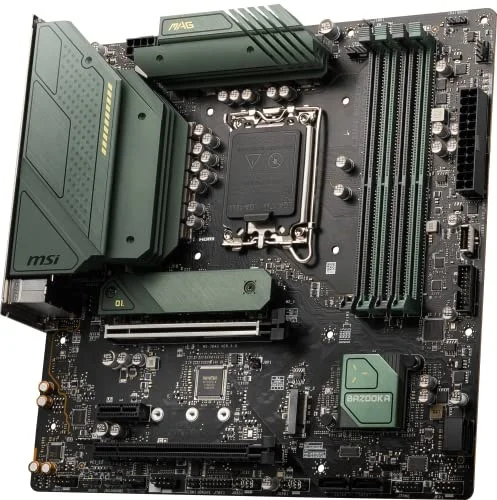

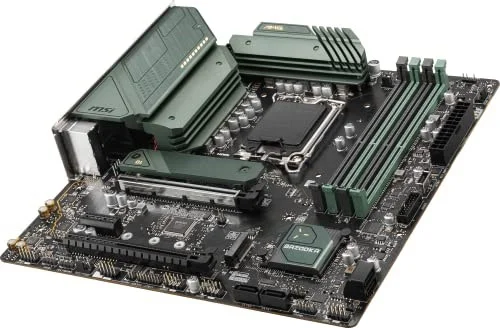

MSI MAG B660M Bazooka DDR4

MSI MAG B660M Bazooka DDR4 LGA1700 Micro-ATX DDR4 128 GB Motherboard

MSI Motherboard $129.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB660

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MAG B660M Bazooka DDR4 is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 4800 MT/s (OC).

Supports 12th Gen Intel Core Pentium Celeron processors for LGA 1700 socket
Supports DDR4 Memory
Lightning Fast Experience: PCIe 4.0 slots, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Manufacturer	MSI
Model Number	MAG B660M BAZOOKA DDR4
Launch Date	March 2022
CPU Socket	LGA1700
Chipset Model	Intel B660
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-4000 / DDR4-4200 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MAG B660M BAZOOKA DDR4
SKU Code	MAG B660M BAZOOKA DDR4
GTIN / EAN	824142278093
