MSI MAG B660M MORTAR MAX WIFI DDR4

MSI MAG B660M MORTAR MAX WIFI DDR4 LGA1700 Micro-ATX DDR4 128 GB Motherboard

MSI Motherboard $139.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB660

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

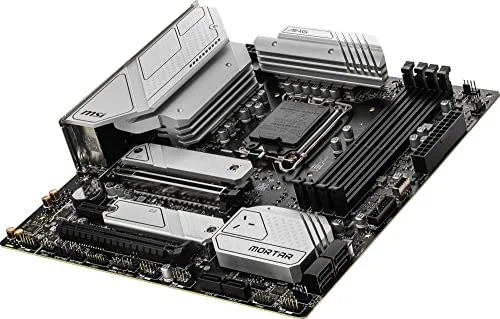

The MSI MAG B660M MORTAR MAX WIFI DDR4 is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 4800 MT/s (OC).

MSI MAG B660M MORTAR MAX WIFI DDR4 LGA 1700 Intel B660 SATA 6Gb/s Micro ATX Motherboard Memory Standard: Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz. Number of Memory Slots: 4x288pin (DDR4) Audio Chipset: Realtek ALC897 PCI Express 5.0 x16: PCI_E1 slot (From CPU) Supports PCIe 5.0 x16 Max LAN Speed: 2.5Gbps CPU Type: Supports 13th / 12th Gen Intel Core, Pentium Gold and Celeron processors. * Maximum Memory Supported: 128GB Channel Supported: Dual Channel

Manufacturer	MSI
Model Number	MAG B660M MORTAR MAX WIFI DDR4
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel B660
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4700 / DDR4-4800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

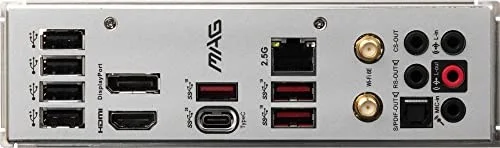

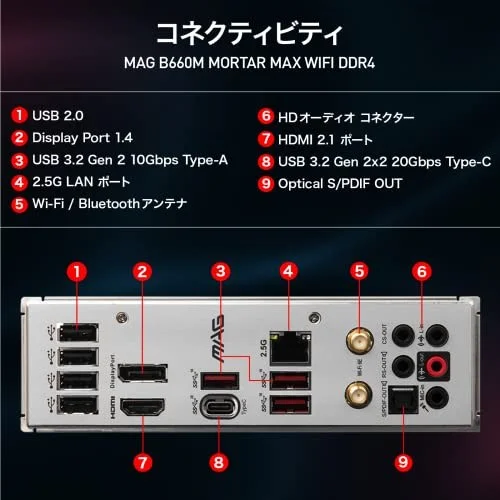

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MAG B660M MORTAR MAX WIFI DDR4
SKU Code	MAG B660M MORTAR MAX WIFI DDR4
GTIN / EAN	824142299135
