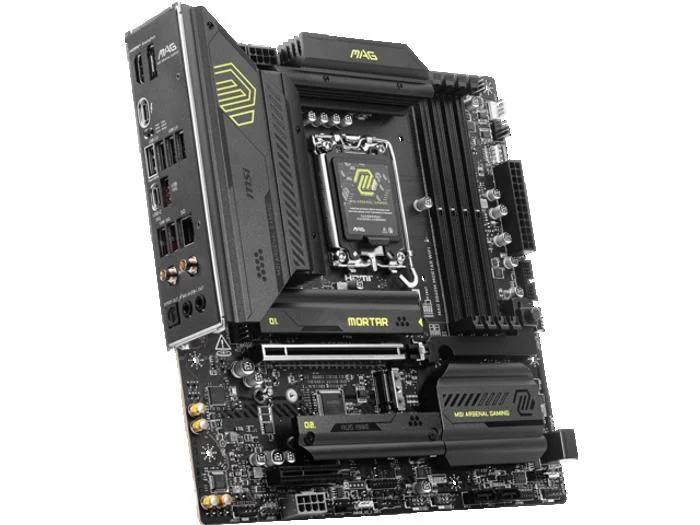

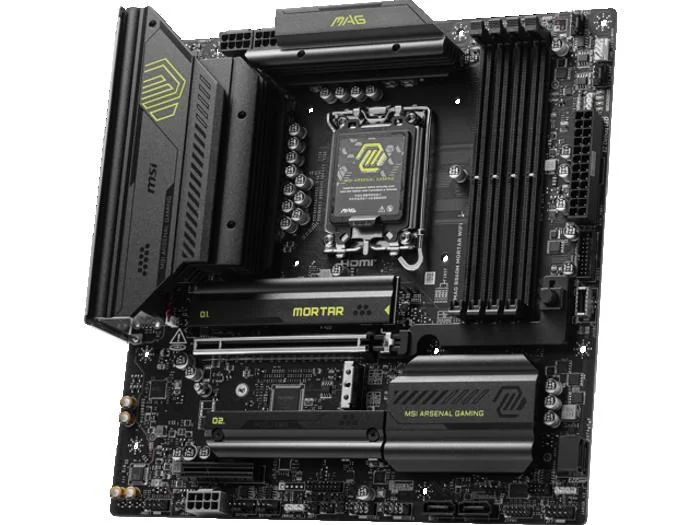

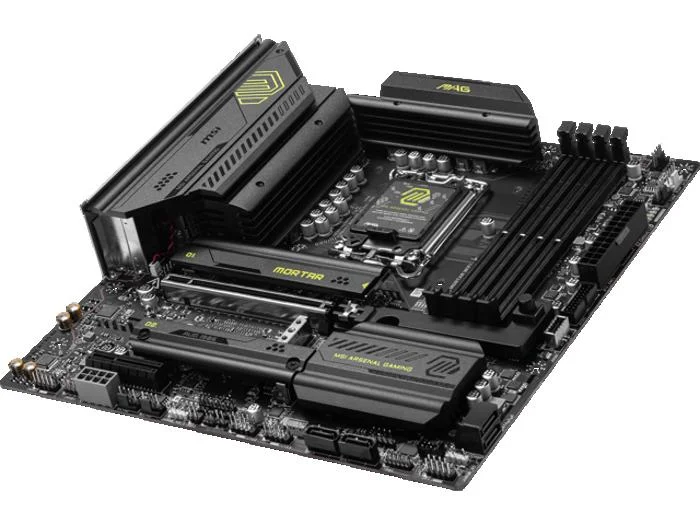

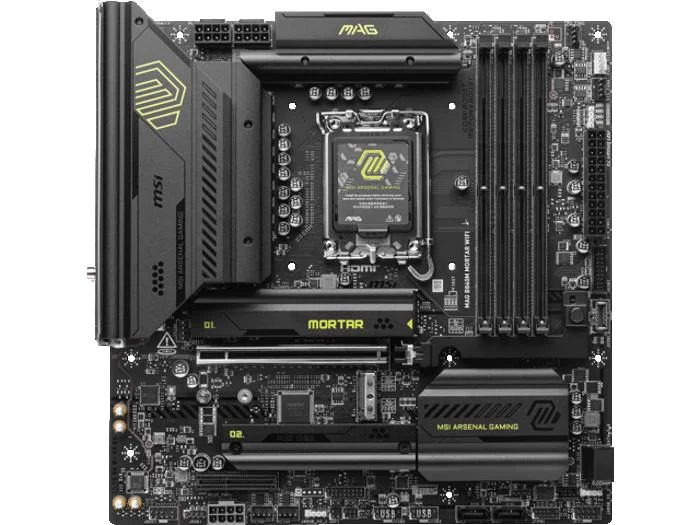

MSI MAG B860M MORTAR WIFI

MSI MAG B860M MORTAR WIFI LGA1851 Micro-ATX DDR5 256 GB Motherboard

MSI Motherboard $192.57

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1851

ChipsetB860

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MAG B860M MORTAR WIFI is a Micro-ATX motherboard for LGA1851. It supports DDR5 memory up to 9200 MT/s (OC).

MSI MAG B860M MORTAR WIFI LGA 1851 Intel B860 SATA 6Gb/s DDR5 CI-E x16 slot M.2 5Gbps LAN Wi-Fi 7 Micro ATX Motherboard Memory Standard: Up to DDR5 9200+ MT/s (OC) Number of Memory Slots: 4x288pin (DDR5) PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 Max LAN Speed: 5Gbps CPU Type: Intel Core Ultra Processors (Series 2) PCI Express x4: 1 x PCI Express 4.0 x4 M.2: 1 x M.2 (Support PCIe 5.0 x4) / 2 x M.2 (Support PCIe 4.0 x4) Audio Channels: 7.1 Channels

Manufacturer	MSI
Model Number	MAG B860M MORTAR WIFI
Launch Date	January 2025
CPU Socket	LGA1851
Chipset Model	Intel B860
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-7900 / DDR5-7950 / DDR5-8000 / DDR5-8200 / DDR5-8266 / DDR5-8400 / DDR5-8600 / DDR5-9200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	1
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)

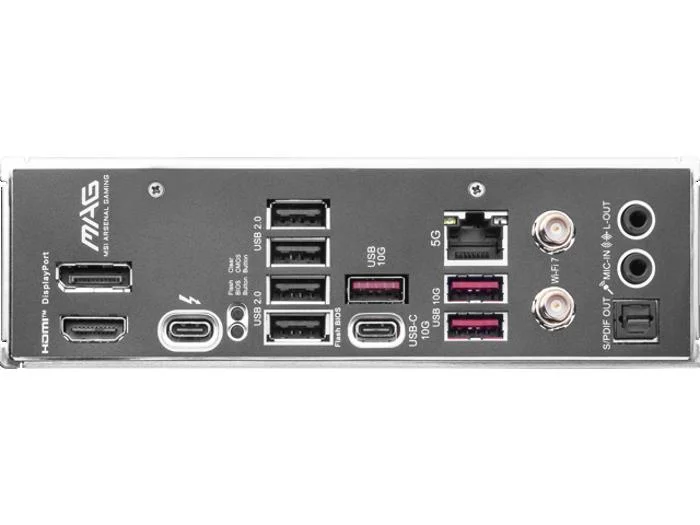

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MAG B860M MORTAR WIFI
SKU Code	MAG B860M MORTAR WIFI
GTIN / EAN	824142393895
