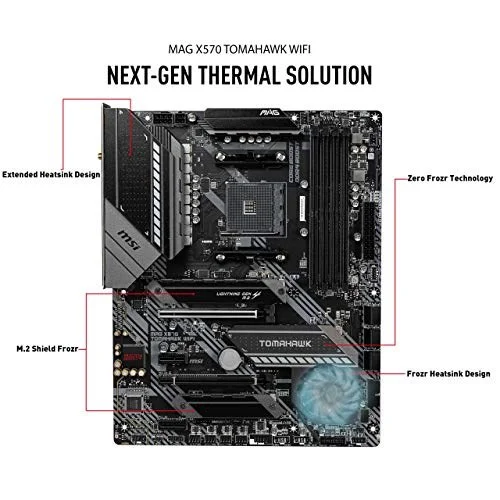

MSI MAG X570 TOMAHAWK WIFI

MSI MAG X570 TOMAHAWK WIFI AM4 ATX DDR4 128 GB Motherboard

MSI Motherboard $219.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MAG X570 TOMAHAWK WIFI is a ATX motherboard for AM4. It supports DDR4 memory up to 4600 MT/s (OC).

128GB Dual Channel DDR4-SDRM Motherboard
ATX Form Factor
Chipset: AMD X570

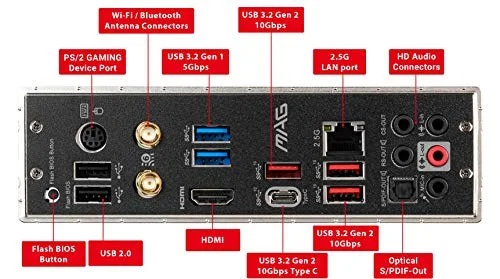

Ports: 3 X USB3.2 Gen 2 Type-A, 1 X USB3.2 Gen 2 Type-C, 1 X Ethernet LAN RJ-45, 1 X HDMI, 2 X USB3.2 Gen 1 Type-A, 2 X USB2.0
Supports Windows 10 X64 Operating System

Manufacturer	MSI
Model Number	MAG X570 TOMAHAWK WIFI 911-7C84-001 X570 TOMAHAWK WIFI X570TOMAWIFI MAGX570-TMH-WF 7C84-001R
Launch Date	August 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4533 / DDR4-4600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MAG X570 TOMAHAWK WIFI
SKU Code	MAG X570 TOMAHAWK WIFI
GTIN / EAN	824142212912
