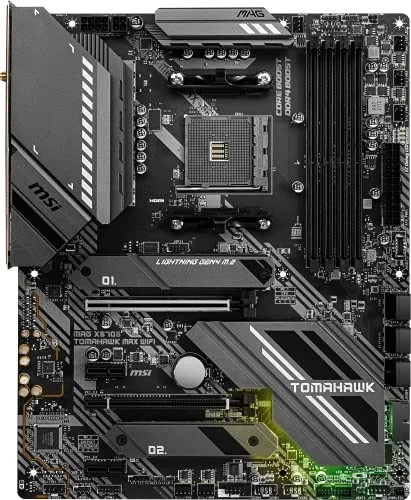

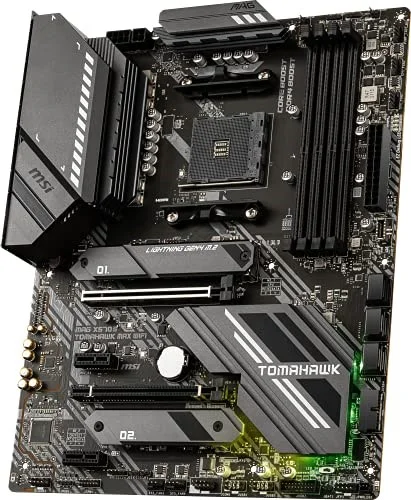

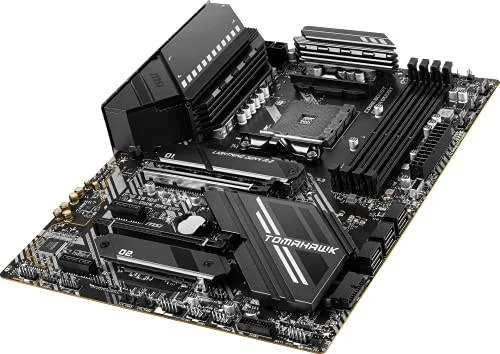

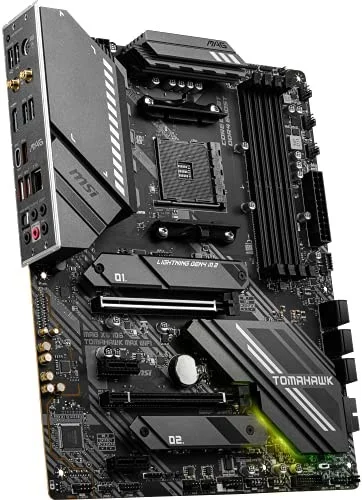

MSI MAG X570S Tomahawk MAX WiFi

MSI MAG X570S Tomahawk MAX WiFi AM4 ATX DDR4 128 GB Motherboard

MSI Motherboard $229.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MAG X570S Tomahawk MAX WiFi is a ATX motherboard for AM4. It supports DDR4 memory up to 5100 MT/s (OC).

Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports DDR4 Memory, up to 5100(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs

Manufacturer	MSI
Model Number	MAG X570S TOMAHAWK MAX WIFI
Launch Date	July 2021
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4800 / DDR4-4866 / DDR4-5000 / DDR4-5100 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

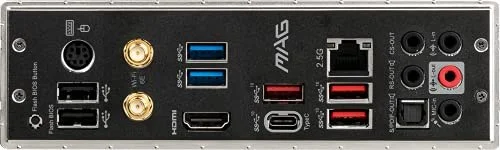

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MAG X570S TOMAHAWK MAX WIFI
SKU Code	MAG X570S TOMAHAWK MAX WIFI
GTIN / EAN	824142262771
