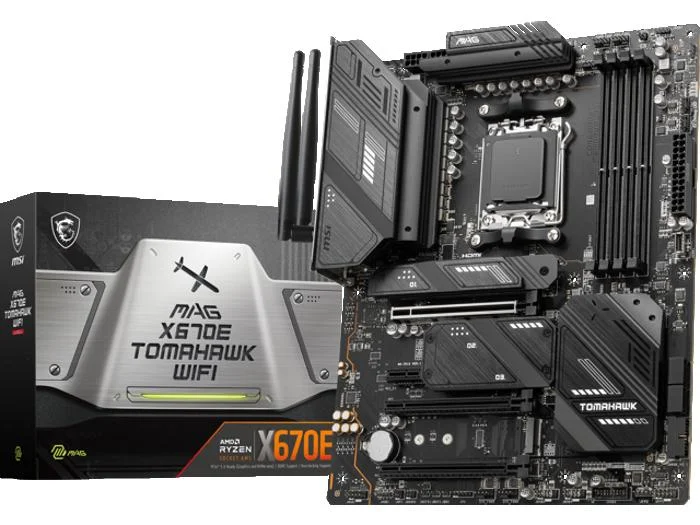

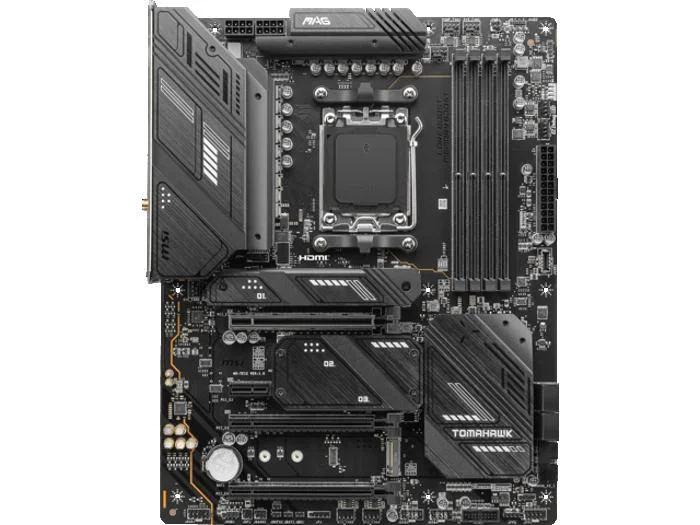

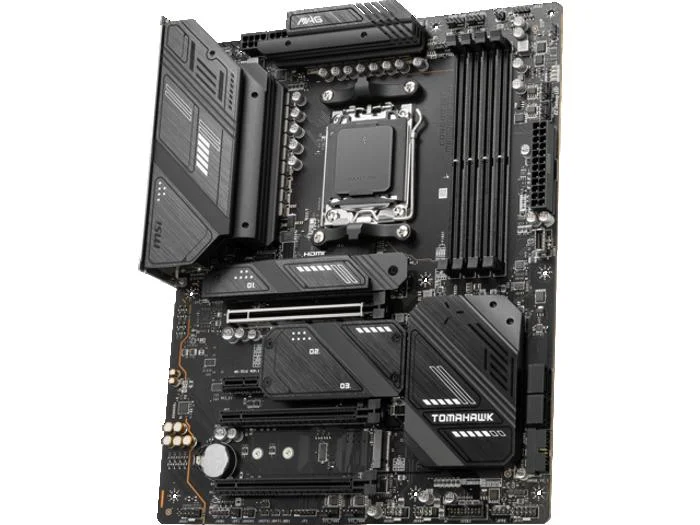

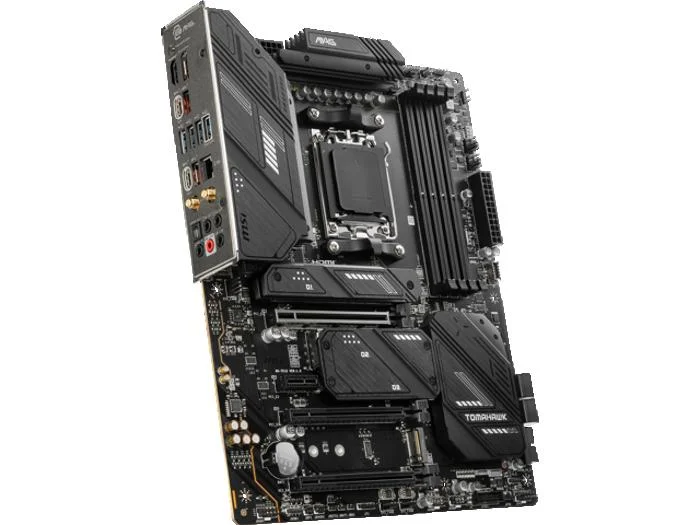

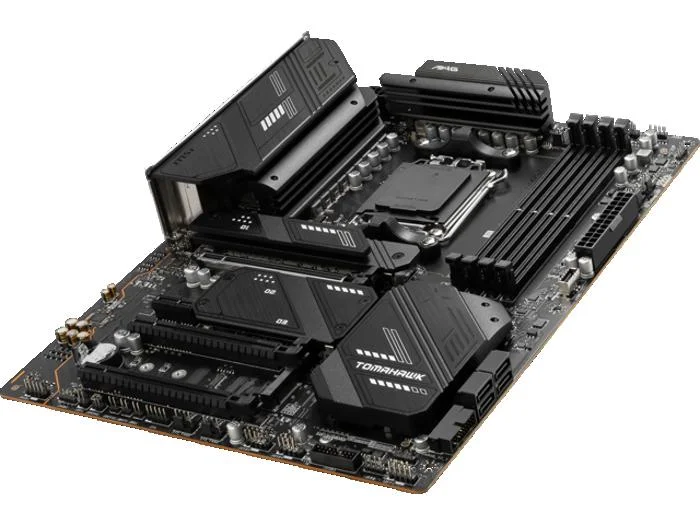

MSI MAG X670E TOMAHAWK WIFI

MSI MAG X670E TOMAHAWK WIFI AM5 ATX DDR5 192 GB Motherboard

MSI Motherboard $214.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetX670E

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MAG X670E TOMAHAWK WIFI is a ATX motherboard for AM5. It supports DDR5 memory up to 6600 MT/s (OC).

MSI MAG X670E TOMAHAWK WIFI AM5 AMD X670 ATX Motherboard Number of Memory Slots: 4x288pin (DDR5) Memory Standard: Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: - 1DPC 1R Max speed up to 6600+ MHz - 1DPC 2R Max speed up to 6000+ MHz - 2DPC 1R Max speed up to 6400+ MHz - 2DPC 2R Max speed up to 4000+ MHz Audio Chipset: Realtek ALC1200 PCI Express x1: 1 x PCI-E x1 slot PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) Audio Channels: 7.1 Channels Max LAN Speed: 2.5Gbps Maximum Memory Supported: 128GB Channel Supported: Dual Channel

Manufacturer	MSI
Model Number	MAG X670E TOMAHAWK WIFI
Launch Date	N/A
CPU Socket	AM5
Chipset Model	Intel X670E
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2280 / 22110 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MAG X670E TOMAHAWK WIFI
SKU Code	MAG X670E TOMAHAWK WIFI
GTIN / EAN	824142316559
