MSI MAG Z590 TORPEDO

MSI MAG Z590 TORPEDO LGA1200 ATX DDR4 128 GB Motherboard

MSI Motherboard $109.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ590

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

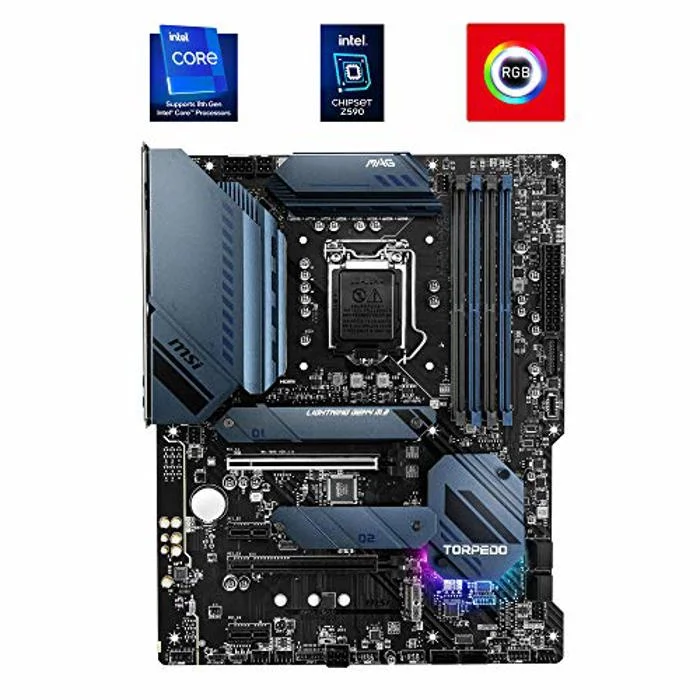

The MSI MAG Z590 TORPEDO is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4700 MT/s (OC).

Intel Z590 Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium Gold / Celeron processors DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR) DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 1DPC 2R Max speed up to 4700+ 2DPC 1R Max speed up to 4400+ 2DPC 2R Max speed up to 4000+

Manufacturer	MSI
Model Number	MAG Z590 TORPEDO
Launch Date	March 2021
CPU Socket	LGA1200
Chipset Model	Intel Z590
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-3866 / DDR4-4000 / DDR4-4200 / DDR4-4400 / DDR4-4600 / DDR4-4700 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A

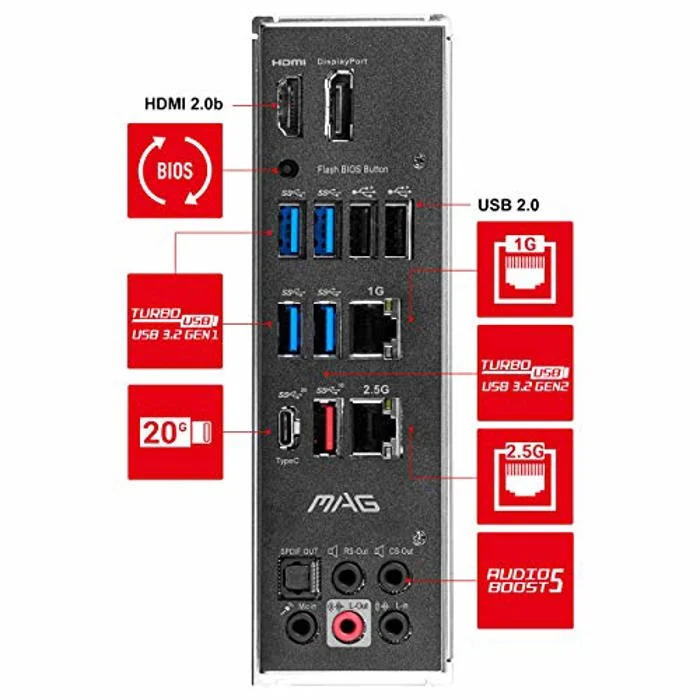

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No

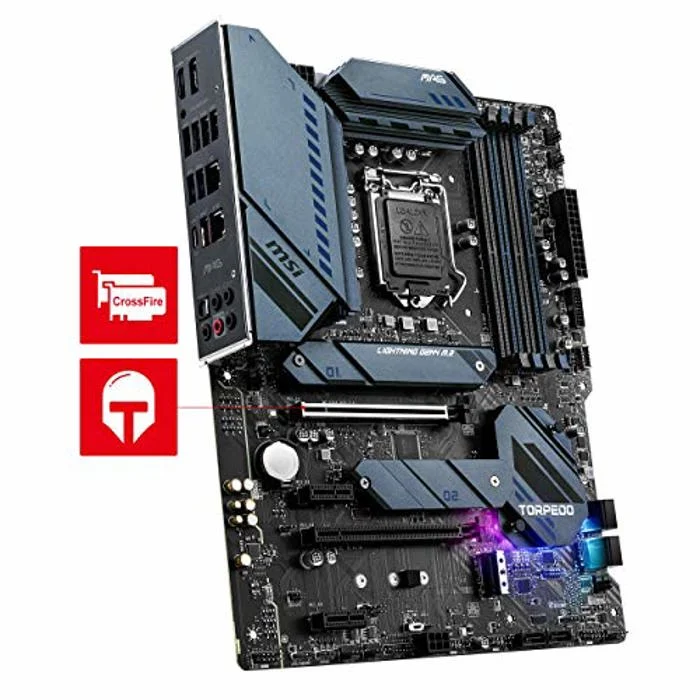

AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MAG Z590 TORPEDO
SKU Code	MAG Z590 TORPEDO
GTIN / EAN	824142242179
