MSI MEG B550 Unify-X

MSI MEG B550 Unify-X AM4 ATX DDR4 64 GB Motherboard

MSI Motherboard $254.6

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB550

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MEG B550 Unify-X is a ATX motherboard for AM4. It supports DDR4 memory up to 5100 MT/s (OC).

Supports AMD Ryzen 5000 & 3000 Series Desktop Processors (Not Compatible With AMD Ryzen 5 3400G & Ryzen 3 3200G) And AMD Ryzen 4000 G-Series Desktop Processors
Supports DDR4 Memory, Dual Channel 5300(OC) Mhz+ (MAX5800)

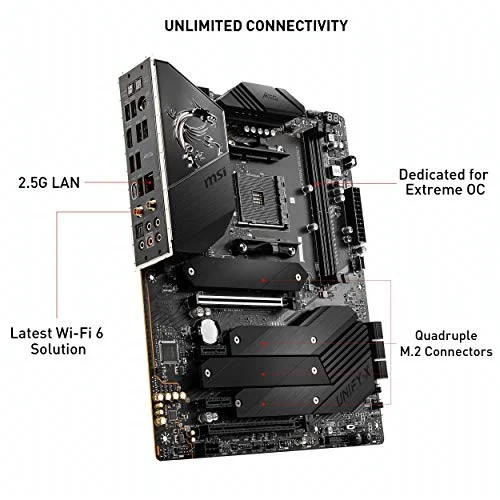

Quadruple M.2 Connectors: Maximum Onboard 4X M.2 Slots, Support The Latest Gen 4 Solution With Up To 64GB/S Bandwidth For Maximum Transfer Speed

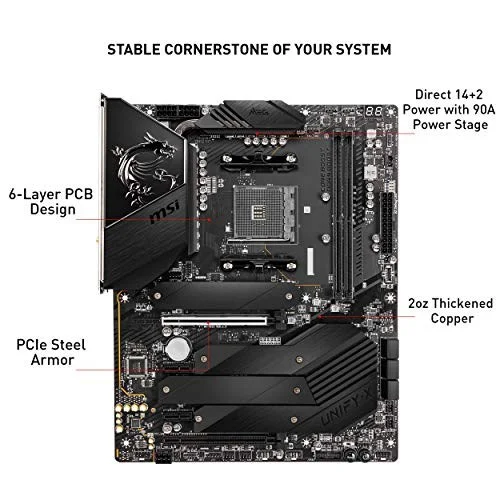

Extreme Power Design: Direct 14+2 Phases With 90A Power Stage And Dual CPU Power Connectors To Unleash Your True Power
Premium Thermal Solution: Aluminum Cover With Additional Choke Thermal Pad Rated For 7W/Mk And PCB With 2Oz Thickened Copper Are Built For High Performance System And Non-Stop Gaming Experience

Manufacturer	MSI
Model Number	MEG B550 UNIFY-X 7D13-007R
Launch Date	December 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel B550
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4733 / DDR4-4800 / DDR4-4866 / DDR4-5000 / DDR4-5100 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2280 / 22110 - M Key, 2280 - M Key, 2280 / 22110 - M Key, 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MEG B550 UNIFY-X
SKU Code	MEG B550 UNIFY-X
GTIN / EAN	824142233238
