MSI MEG Z490 UNIFY

MSI MEG Z490 UNIFY LGA1200 ATX DDR4 128 GB Motherboard

MSI Motherboard $270.05

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

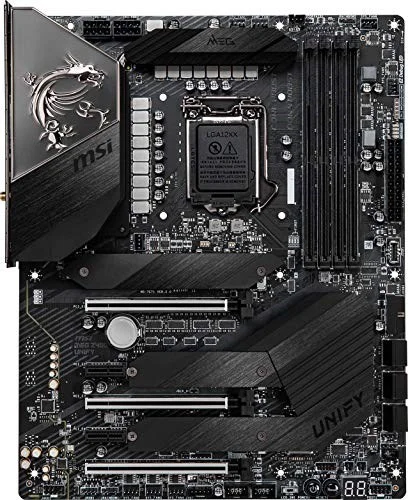

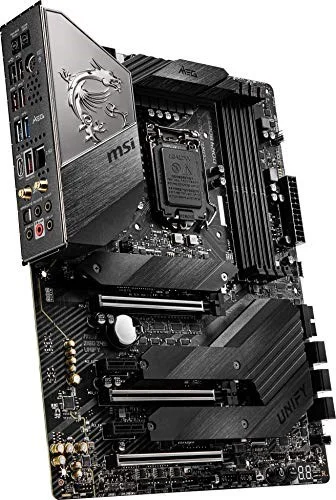

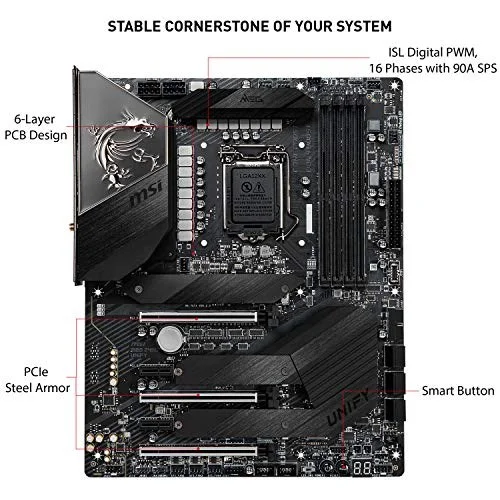

The MSI MEG Z490 UNIFY is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).

Supports 10Th Generation Intel Core / Pentium Gold / Celeron Processors For LGA 1200 Socket
Supports Dual Channel DDR4 Memory Up To 128GB Total (4800Mhz)

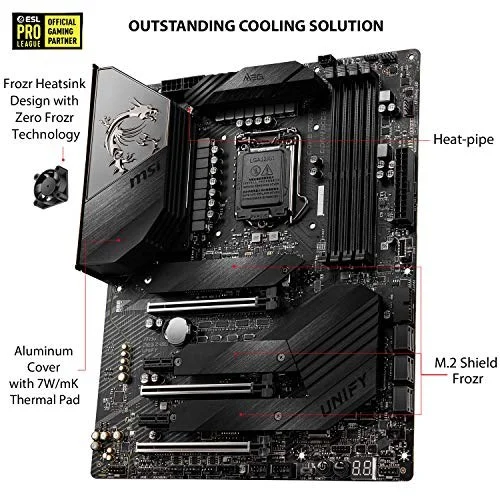

Frozr Heatsink Designed With Active Cooling, Double Ball Bearings, And Zero Frozr Technology For High-Performance Heat Dissipation

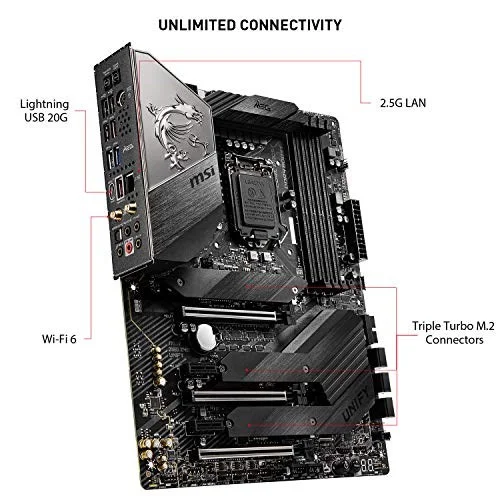

Triple Turbo M.2 With M.2 Shield Frozr Delivers Transfer Speeds Of Up To 32 GB/S For Ultra-Fast Ssds
On-Board 2.5G LAN Plus Gigabit LAN With With Wi-Fi 6 (802.11Ax)
Pre-Installed I/O Shielding For Convenience And Protection From Electrostatic Discharge

Manufacturer	MSI
Model Number	MEG Z490 UNIFY
Launch Date	May 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MEG Z490 UNIFY
SKU Code	MEG Z490 UNIFY
GTIN / EAN	824142213414
