MSI MEG Z490I UNIFY

MSI MEG Z490I UNIFY LGA1200 Mini-ITX DDR4 64 GB Motherboard

MSI Motherboard $269.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

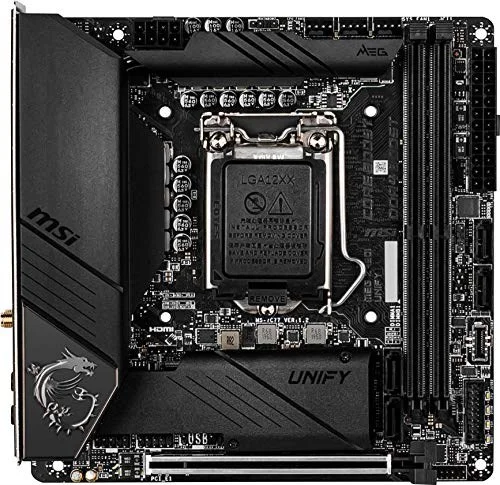

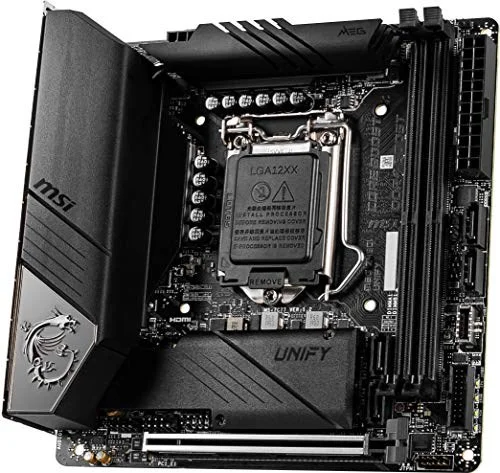

The MSI MEG Z490I UNIFY is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 5000 MT/s (OC).

Supports 10Th Generation Intel Core / Pentium Gold / Celeron Processors For LGA 1200 Socket
Supports Dual Channel DDR4 Memory

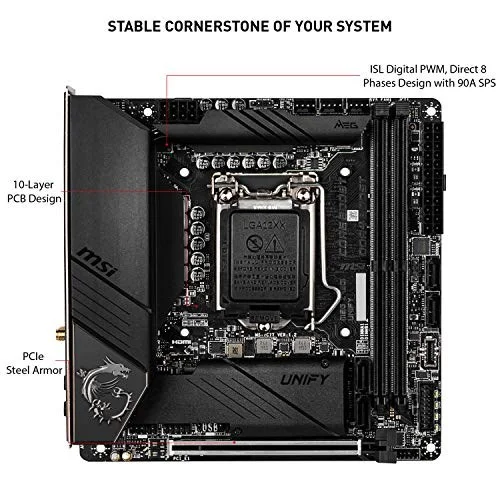

Aluminum Cover With Extended Heatsink: All-Metal Extended Heatsink Cover Enlarge The Surface Of Heat Dissipation, Ensures Even High-End Processors To Run In Full Speed.

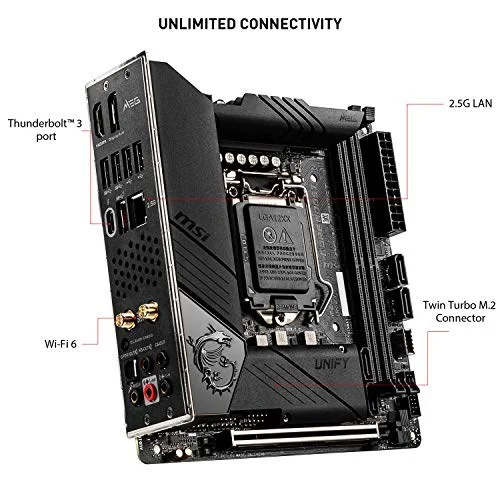

2.5G Gaming LAN With Latest Wi-Fi 6 Solution: Onboard 2.5G LAN With Gaming LAN Manager, Combining Latest Wi-Fi 6 Solution Which Supports MU-MIMO And BSS Color Technology, Delivering The Best Online Gaming Experience.
Socket LGA1200
Frozr Heatsink Design: Designed With The Patented Fan And Double Ball Bearings To Provide The Best Performance For Enthusiast Gamers And Prosumers.

Manufacturer	MSI
Model Number	MEG Z490I UNIFY 7C77-007R
Launch Date	May 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4800 / DDR4-5000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

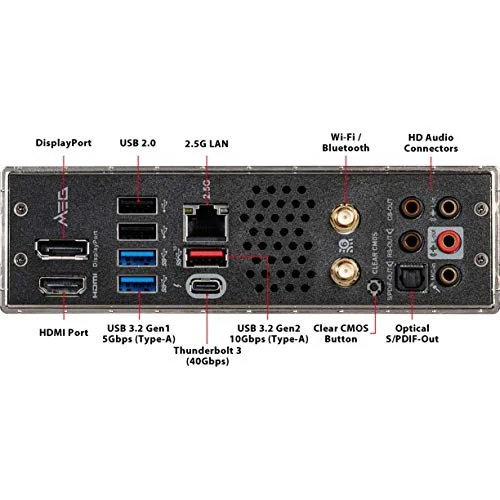

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MEG Z490I UNIFY
SKU Code	MEG Z490I UNIFY
GTIN / EAN	824142214121
