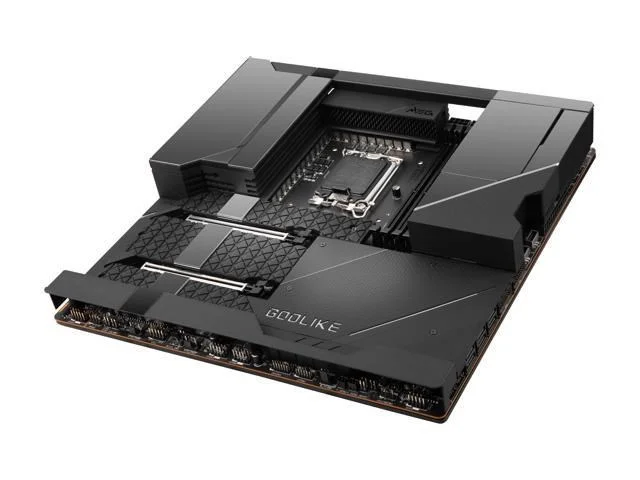

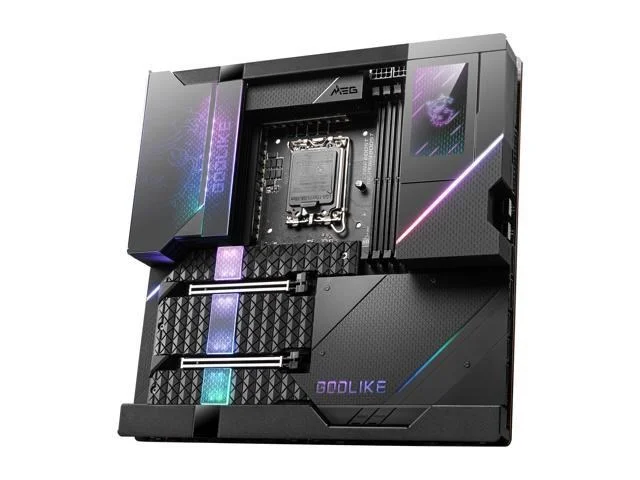

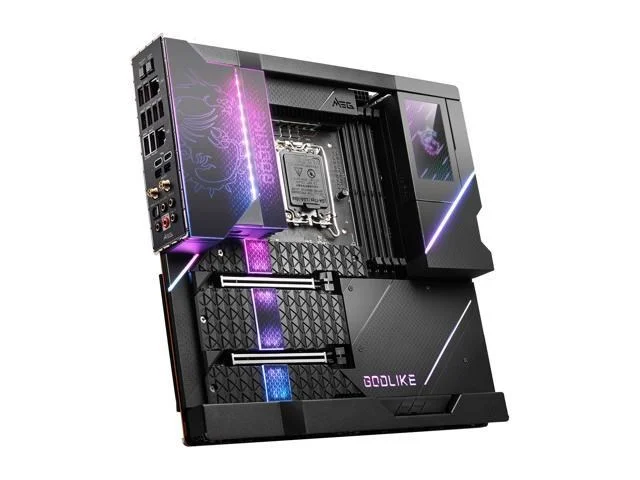

MSI MEG Z690 GODLIKE

MSI MEG Z690 GODLIKE LGA1700 EATX DDR5 192 GB Motherboard

MSI Motherboard $699.98

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorEATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

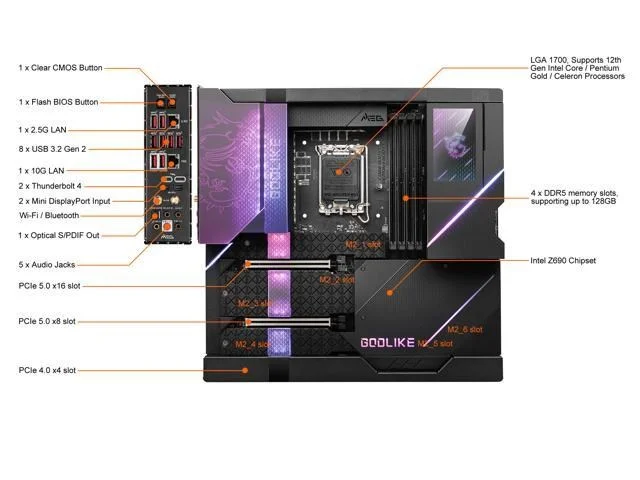

The MSI MEG Z690 GODLIKE is a EATX motherboard for LGA1700. It supports DDR5 memory up to 6666 MT/s (OC).

MSI MEG Z690 GODLIKE DDR5 LGA 1700 Intel Z690 SATA 6Gb/s Extended ATX Intel Motherboard Memory Standard: DDR5 1R 4800 (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ 1DPC 2R Max speed up to 5600+ 2DPC 1R Max speed up to 4000+ 2DPC 2R Max speed up to 4000+ Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC4082 Codec + ES9218PQ Combo DAC/HPA PCI Express 5.0 x16: 2 x PCI Express 5.0 x16 * PCI_E1 supports up to PCIe 5.0 x16. * PCI_E2 supports up to PCIe 5.0 x8. * M2_3 will be unavailable when installing device in the PCI_E2 slot. * Actual support may vary by CPU. PCI Express 4.0 x16: 1 x PCI Express 4.0 x16 * Supports up to PCIe 4.0 x4. * PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously.

Manufacturer	MSI
Model Number	MEG Z690 GODLIKE
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	EATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6666 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	7 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

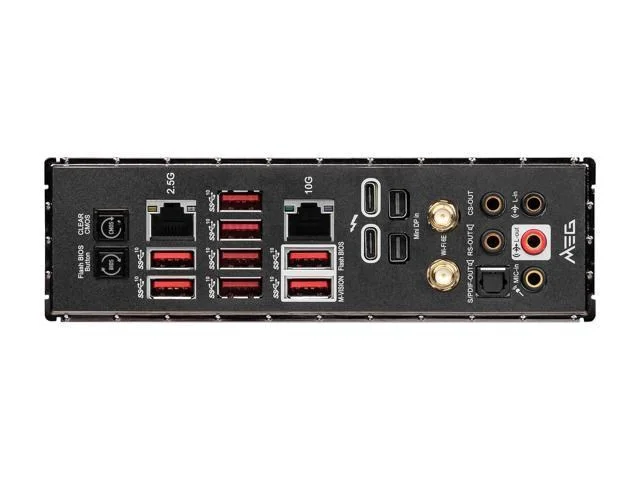

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	2
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MEG Z690 GODLIKE
SKU Code	MEG Z690 GODLIKE
GTIN / EAN	824142270288
