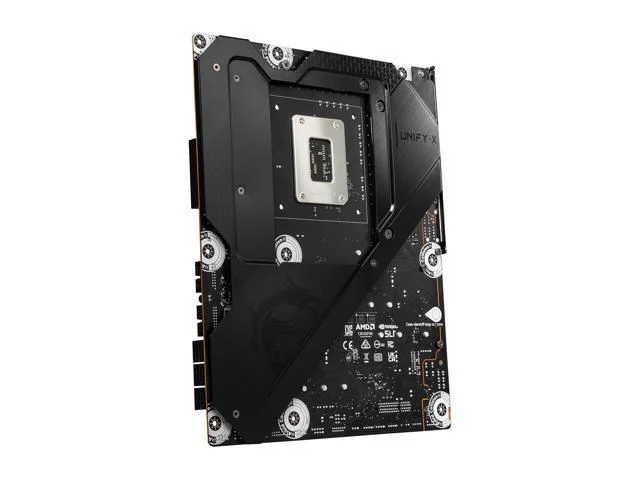

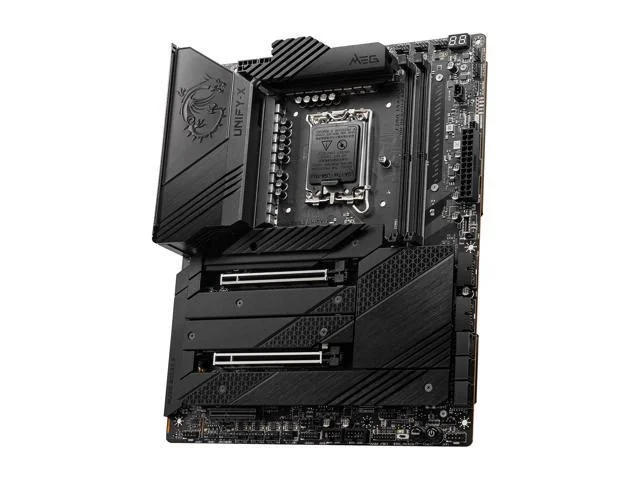

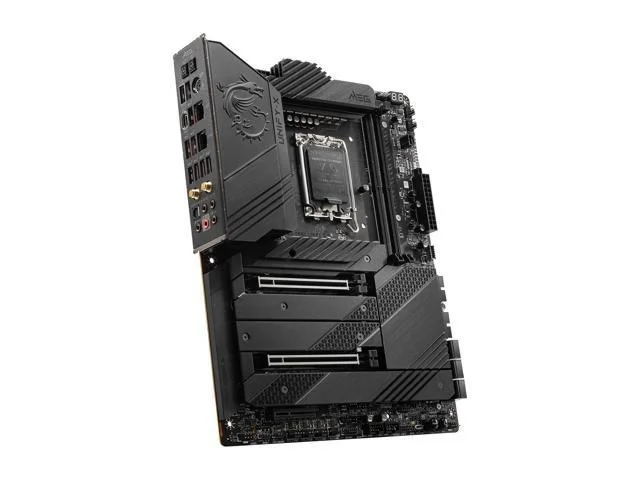

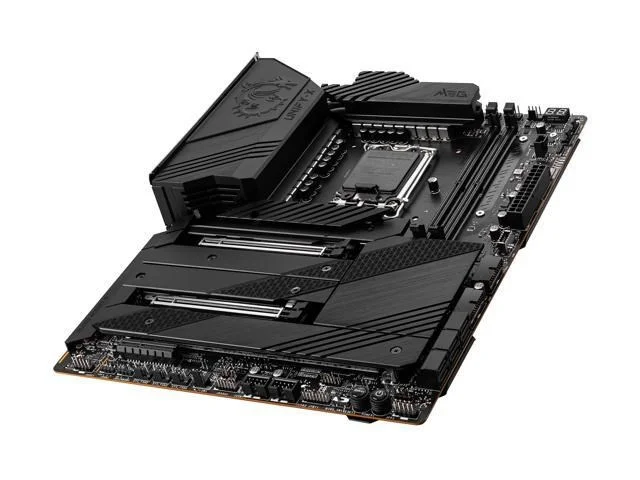

MSI MEG Z690 UNIFY-X

MSI MEG Z690 UNIFY-X LGA1700 ATX DDR5 64 GB Motherboard

MSI Motherboard $484.79

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700
ChipsetZ690
Form FactorATX
MemoryDDR5
Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

Seller Shipping Price
-
N/A
-
N/A
-
N/A
Free

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

Overview

The MSI MEG Z690 UNIFY-X is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6800 MT/s (OC).

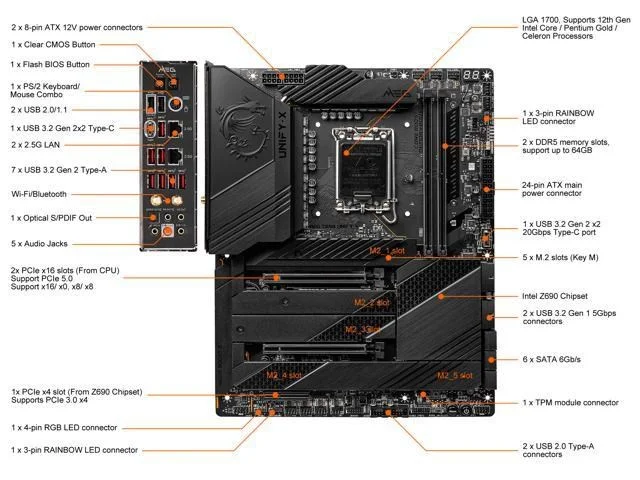

  • MSI MEG Z690 UNIFY-X DDR5 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard Memory Standard: DDR5 1R 4800 (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6800+ 1DPC 2R Max speed up to 5600+ Number of Memory Slots: 2×288pin (DDR5) Audio Chipset: Realtek ALC4080 PCI Express 5.0 x16: 2 x PCI Express 5.0 x16 * Actual support may vary by CPU. * Support x16/ x0, x8/ x8. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: Dual 10/100/1000/2500Mbps CPU Type: Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors. Maximum Memory Supported: 64GB

Specifications

Manufacturer MSI
Model Number MEG Z690 UNIFY-X
Launch Date N/A
CPU Socket LGA1700
Chipset Model Intel Z690
Board Size / Form Factor ATX
Supported Memory Type DDR5
DIMM Slots 2
Maximum RAM Capacity 64 GB
Valid DDR4 Speeds DDR5-4000 / DDR5-4200 / DDR5-4400 / DDR5-4600 / DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6800 (OC)
ECC Memory Support No
Expansion Slots (PCIe) 2 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty) 2
PCIe x4 (Qty) 1
PCIe x1 (Qty) 0
M.2 Slot Count 6 × M.2
M.2 Device Compatibility 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports 6 × SATA 6Gbps
SATA Express Ports 0
Wired Networking (LAN) N/A
Onboard Wi-Fi Yes
Wi-Fi Standard 6 (802.11ax)
Rear-Panel USB USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers 1
Internal USB 3.2 Gen 2 Headers 0
Internal USB 3.2 Gen 1 Headers 2
Internal USB 2.0 Headers 2
NVIDIA SLI Yes
AMD CrossFire Yes
RAID Capability Yes
Back-Connect Layout No
Manufacturer Part Number (MPN) MEG Z690 UNIFY-X
SKU Code MEG Z690 UNIFY-X
GTIN / EAN 824142270318
