MSI MEG Z690 UNIFY

MSI MEG Z690 UNIFY LGA1700 ATX DDR5 192 GB Motherboard

MSI Motherboard $197.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

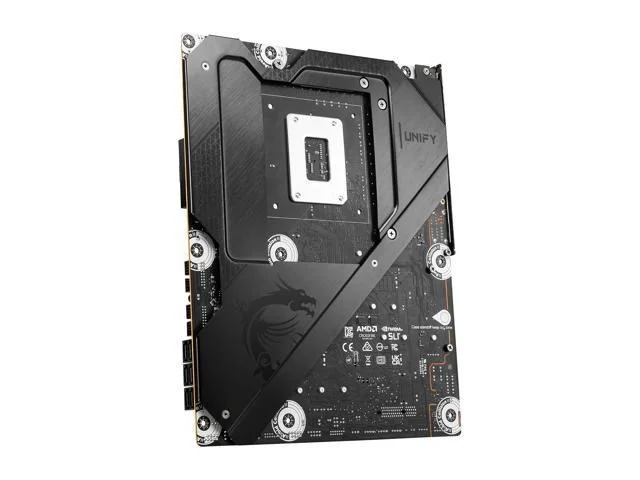

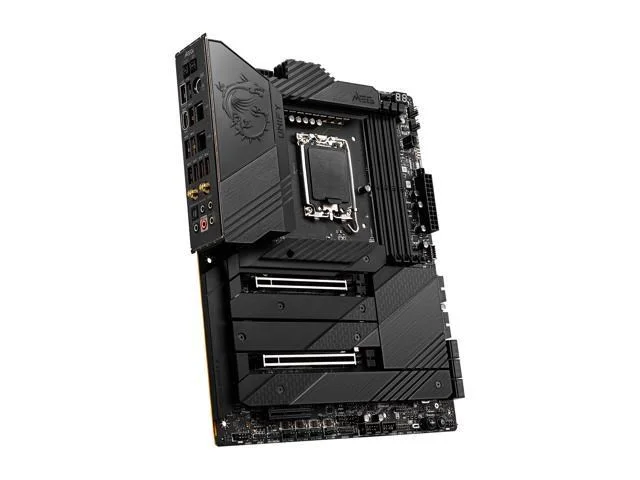

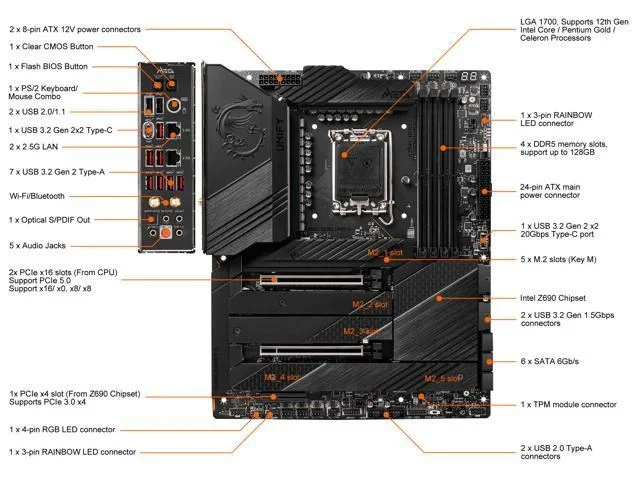

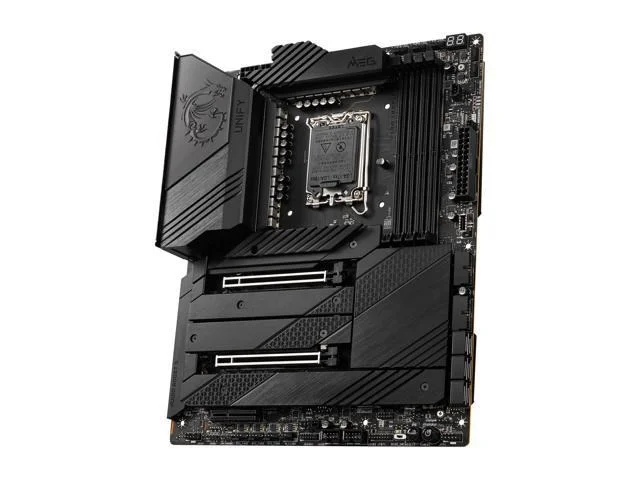

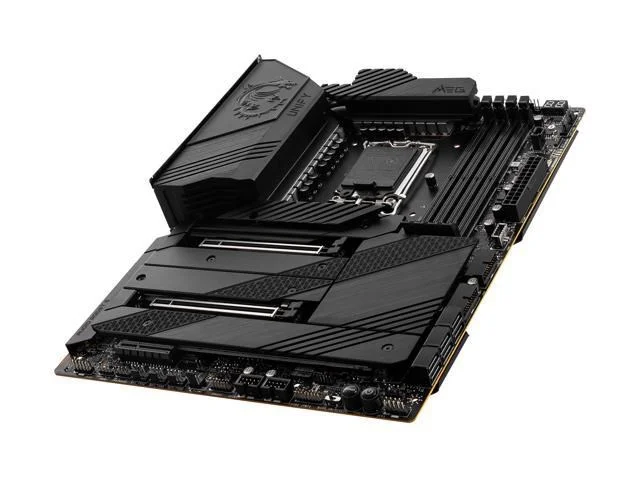

The MSI MEG Z690 UNIFY is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).

MSI MEG Z690 UNIFY LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard Memory Standard: DDR5 1R 4800 (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ 1DPC 2R Max speed up to 5600+ 2DPC 1R Max speed up to 4000+ 2DPC 2R Max speed up to 4000+ Number of Memory Slots: 4×288pin (DDR5) Audio Chipset: Realtek ALC4080 PCI Express 5.0 x16: 2 x PCI Express 5.0 x16 * Actual support may vary by CPU. * Support x16/x0, x8/x8. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: Dual 10/100/1000/2500Mbps CPU Type: Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors

Manufacturer	MSI
Model Number	MEG Z690 UNIFY
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	2
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	6 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2230 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MEG Z690 UNIFY
SKU Code	MEG Z690 UNIFY
GTIN / EAN	824142270301
