MSI MEG Z690I UNIFY

MSI MEG Z690I UNIFY LGA1700 Mini-ITX DDR5 64 GB Motherboard

MSI Motherboard $373

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorMini-ITX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

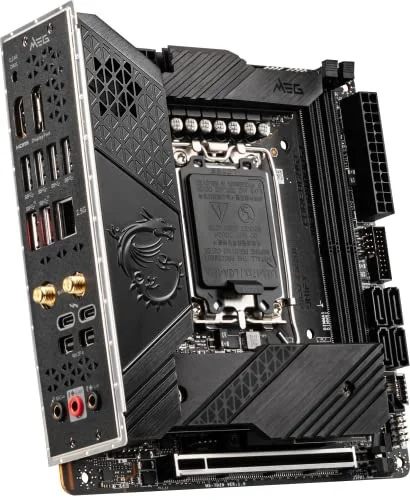

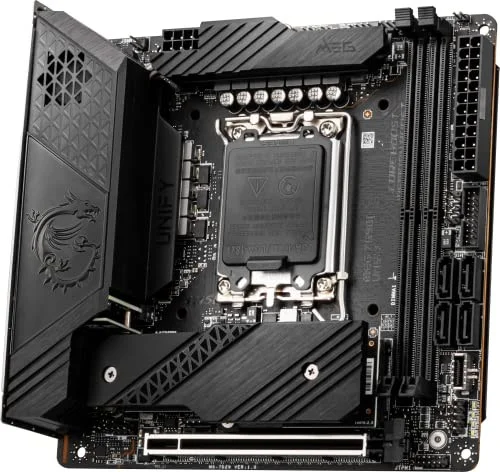

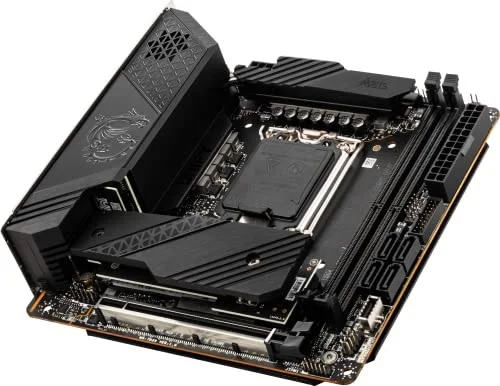

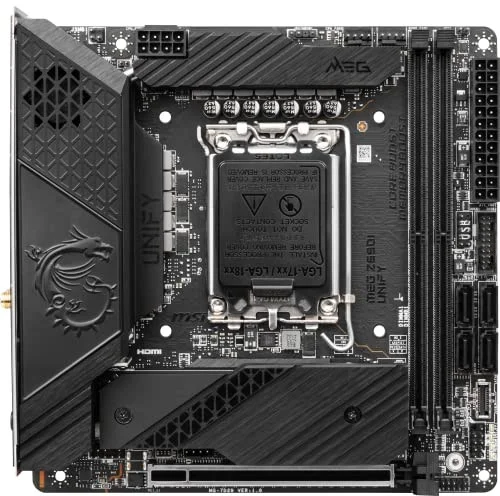

The MSI MEG Z690I UNIFY is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 6800 MT/s (OC).

Supports 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5-6800+MHz(OC)
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution for an even clearer DDR5 memory signal to explore the boundaries of memory overclocking, deliver the world class memory performance.
Extreme Power Design: Premium digital PWM, direct 10+1+1 phases with 105A Smart Power Stage and Titanium Choke III to unleash the true power of your processors.
Triple M.2 Connectors : Onboard triple M.2 connectors for the maximum storage performance with dual Lightning Gen 4 solution.

Manufacturer	MSI
Model Number	MEG Z690I UNIFY
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR5
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2280 - M Key, 2230 - E key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

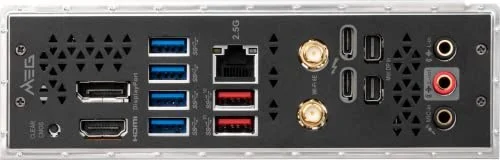

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MEG Z690I UNIFY
SKU Code	MEG Z690I UNIFY
GTIN / EAN	824142270325
