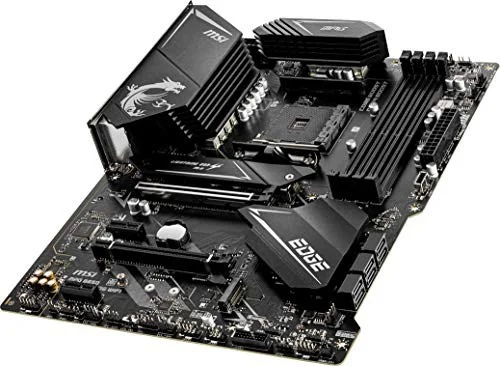

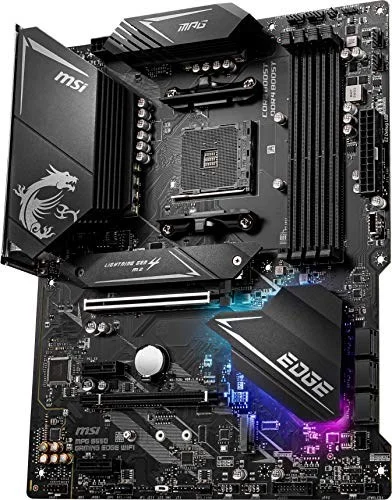

MSI MPG B550 GAMING EDGE WIFI

MSI MPG B550 GAMING EDGE WIFI AM4 ATX DDR4 128 GB Motherboard

MSI Motherboard $189.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB550

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MPG B550 GAMING EDGE WIFI is a ATX motherboard for AM4. It supports DDR4 memory up to 5000 MT/s (OC).

Upport For 3Rd Gen AMD Ryzen Processors And Future AMD Ryzen Processors With BIOS Update
Supports Dual Channel DDR4 Memory Up To 128 GB (4866 Mhz)

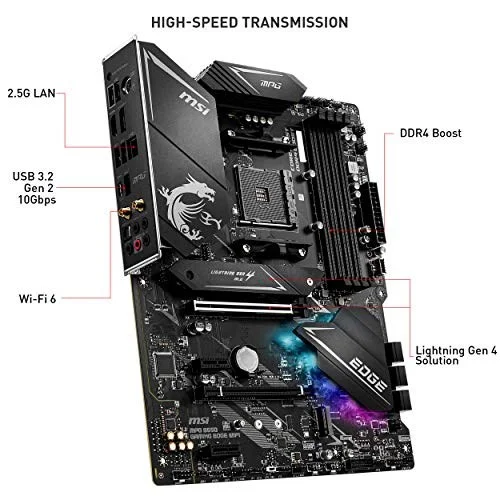

2.5G LAN With LAN Manager And Wi-Fi 6 AX Solution
MYSTIC LIGHT: RGB LED Lighting And Extendable Pin Headers – 16.8 Million Colors / 29 Effects
Lightning Fast Game Experience: Pcie 4.0, Lightning Gen 4 M.2 With M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
AUDIO BOOST Rewards Your Ears With Studio Grade Sound Quality For Immersive Gaming Experiences

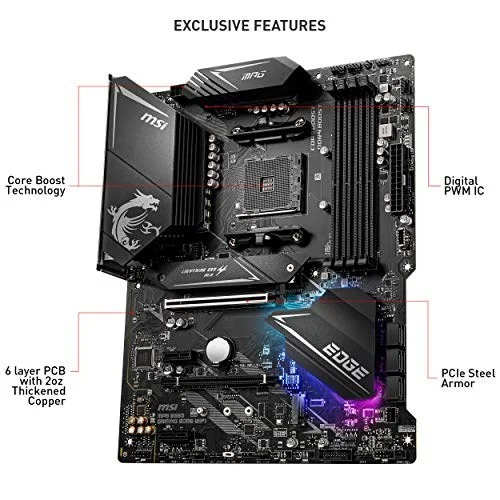

Premium Thermal Solution: Extended Heatsink With Additional Choke Thermal Pad Rated For 7W/Mk And PCB With 2Oz Thickened Copper

Manufacturer	MSI
Model Number	MPG B550 GAMING EDGE WIFI 7C91-008R
Launch Date	July 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel B550
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4866 / DDR4-5000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

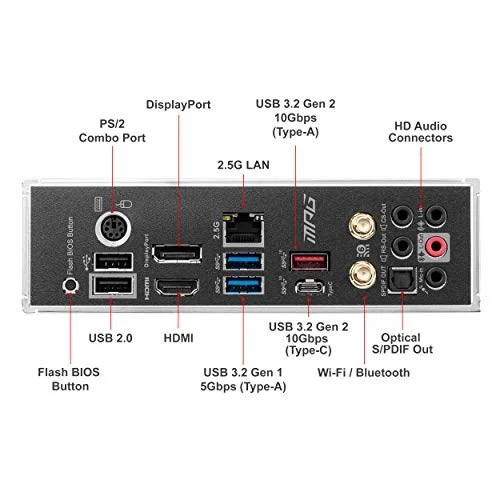

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MPG B550 GAMING EDGE WIFI
SKU Code	MPG B550 GAMING EDGE WIFI
GTIN / EAN	824142217634
