MSI MPG B550I Gaming Edge WiFi

MSI MPG B550I Gaming Edge WiFi AM4 Mini-ITX DDR4 64 GB Motherboard

MSI Motherboard $194.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB550

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

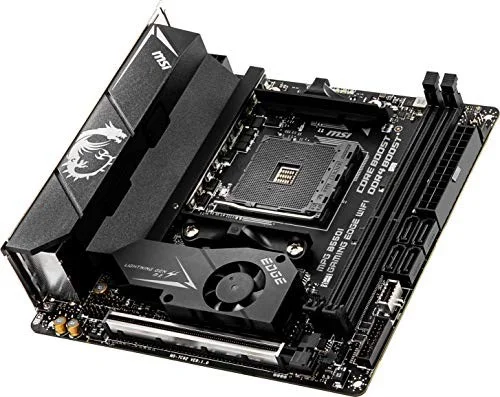

The MSI MPG B550I Gaming Edge WiFi is a Mini-ITX motherboard for AM4. It supports DDR4 memory up to 4600 MT/s (OC).

Support For 3Rd Gen AMD Ryzen Processors And Future AMD Ryzen Processors With BIOS Update
Supports Dual Channel DDR4 Memory Up To 64 GB (4600 Mhz)

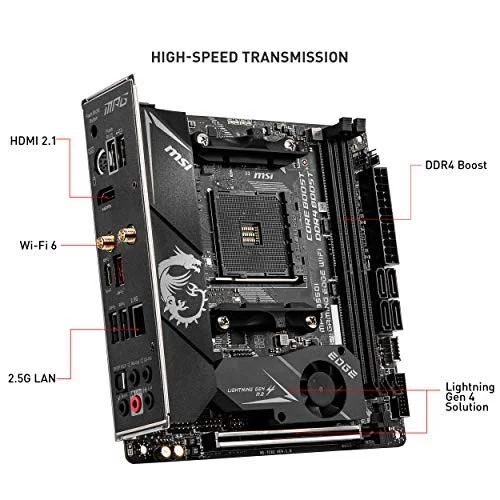

2.5G LAN With LAN Manager And Wi-Fi 6 AX Solution
Lightning Fast Game Experience: Pcie 4.0, Lightning Gen 4 M.2 With M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
AUDIO BOOST Rewards Your Ears With Studio Grade Sound Quality For Immersive Gaming Experiences

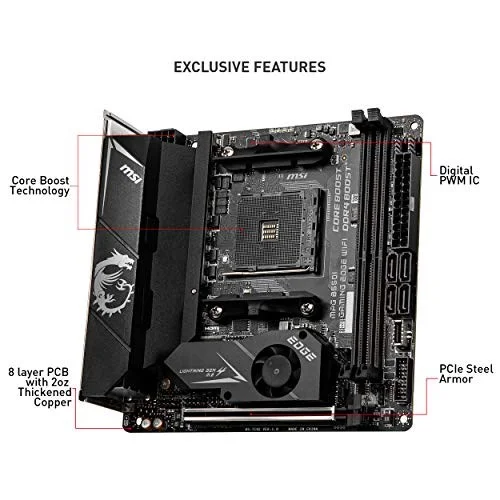

Premium Thermal Solution: Extended Heatsink, MOSFET Baseplate, M.2 Shield Frozr With Frozr Heatsink And Patented Fan Design
Mini-ITX Form Factor

Manufacturer	MSI
Model Number	MPG B550I Gaming Edge WiFi 7C92-002R
Launch Date	July 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel B550
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4533 / DDR4-4600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

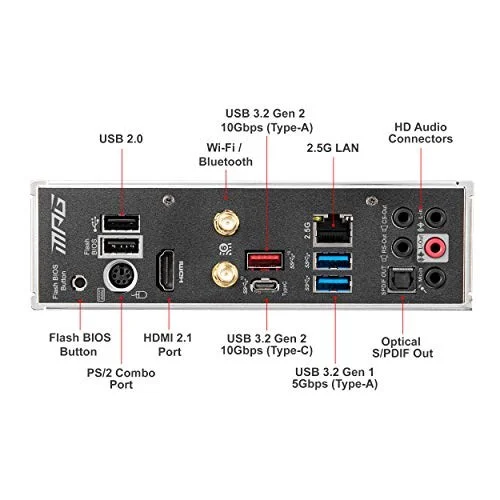

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MPG B550I Gaming Edge WiFi
SKU Code	MPG B550I Gaming Edge WiFi
GTIN / EAN	824142218280
