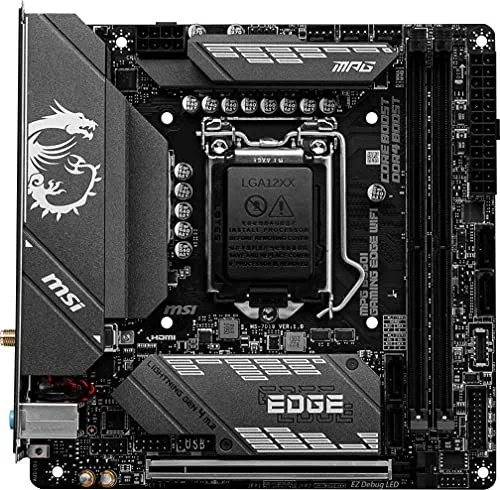

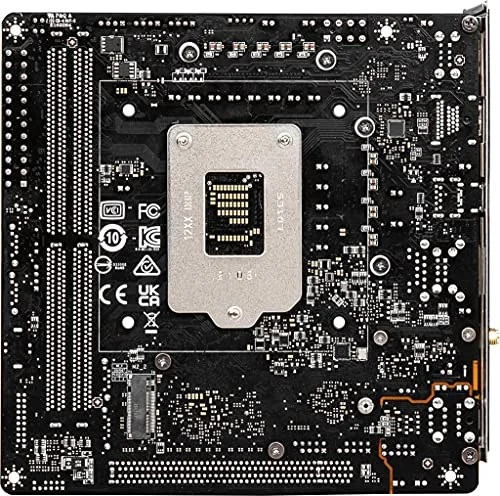

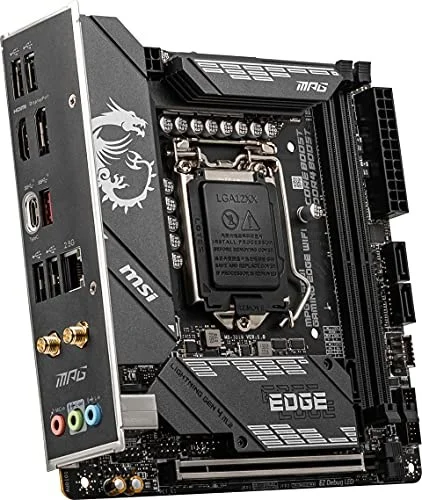

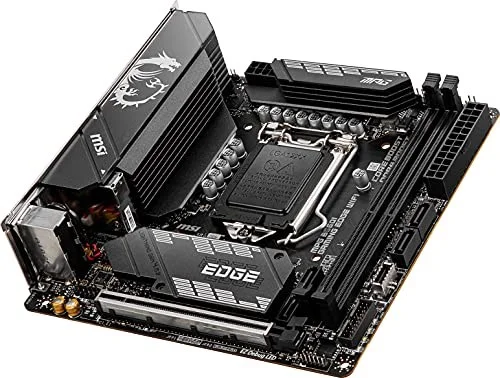

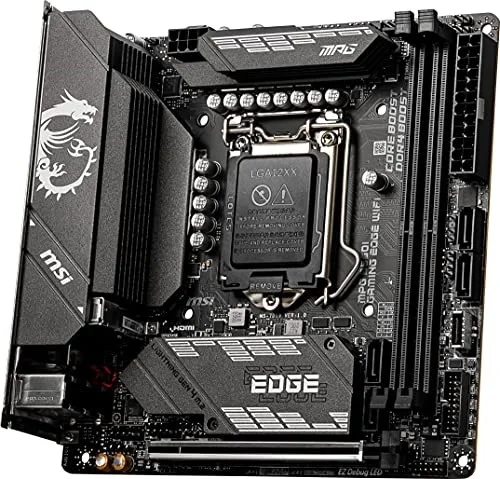

MSI MPG B560I Gaming Edge WiFi

MSI MPG B560I Gaming Edge WiFi LGA1200 Mini-ITX DDR4 64 GB Motherboard

MSI Motherboard $169.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetB560

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MPG B560I Gaming Edge WiFi is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 5200 MT/s (OC).

Supports 11th and 10th Gen Intel Core/Pentium/Celeron processors for LGA 1200 Socket
Supports DDR4 Memory, up to 5200(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
Enhanced Power Design: 6+2+1 direct power design, 8-pin CPU power connectors, Core Boost, DDR4 Boost
2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Manufacturer	MSI
Model Number	MPG B560I GAMING EDGE WIFI 7D19-001R
Launch Date	April 2021
CPU Socket	LGA1200
Chipset Model	Intel B560
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-4000 / DDR4-4700 / DDR4-5200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MPG B560I GAMING EDGE WIFI
SKU Code	MPG B560I GAMING EDGE WIFI
GTIN / EAN	824142246016
