MSI MPG B760M EDGE TI WIFI

MSI MPG B760M EDGE TI WIFI LGA1700 Micro-ATX DDR5 192 GB Motherboard

MSI Motherboard $211.19

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB760

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

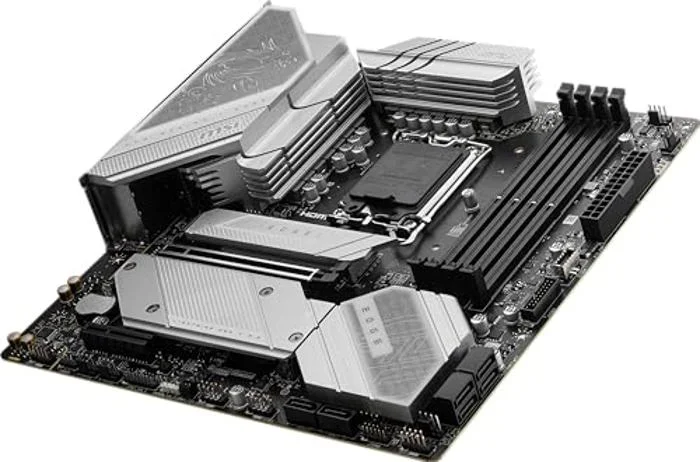

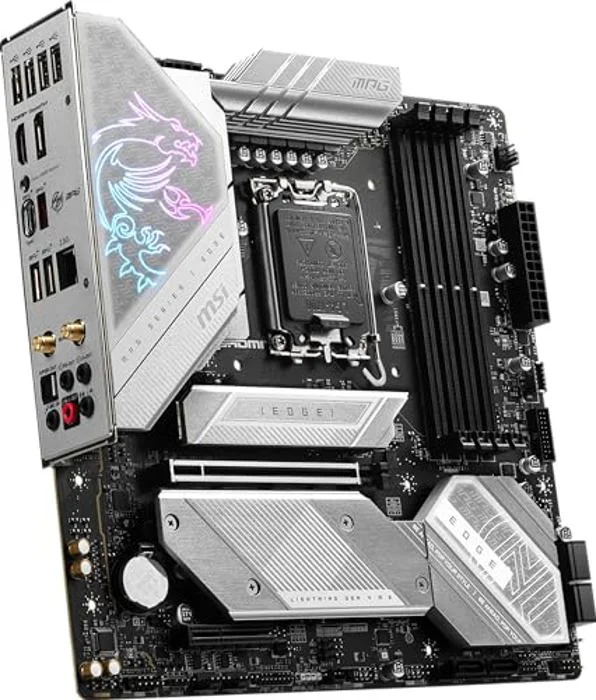

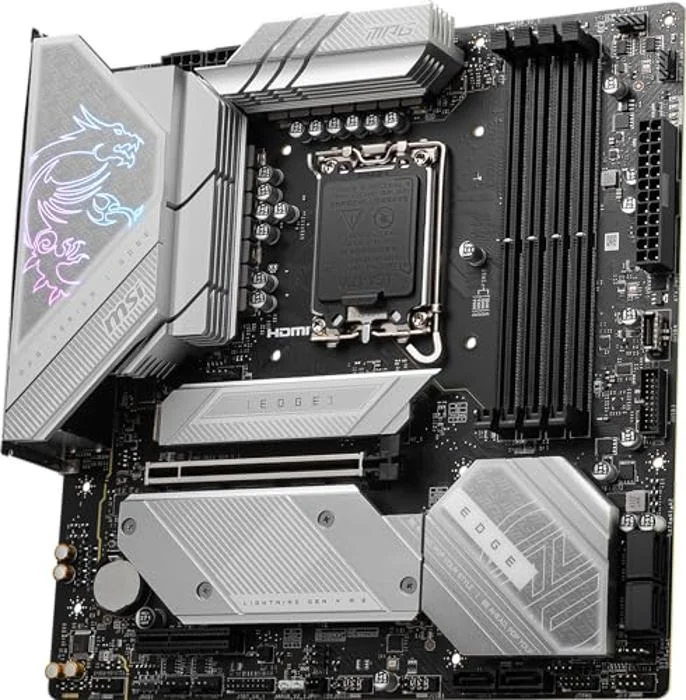

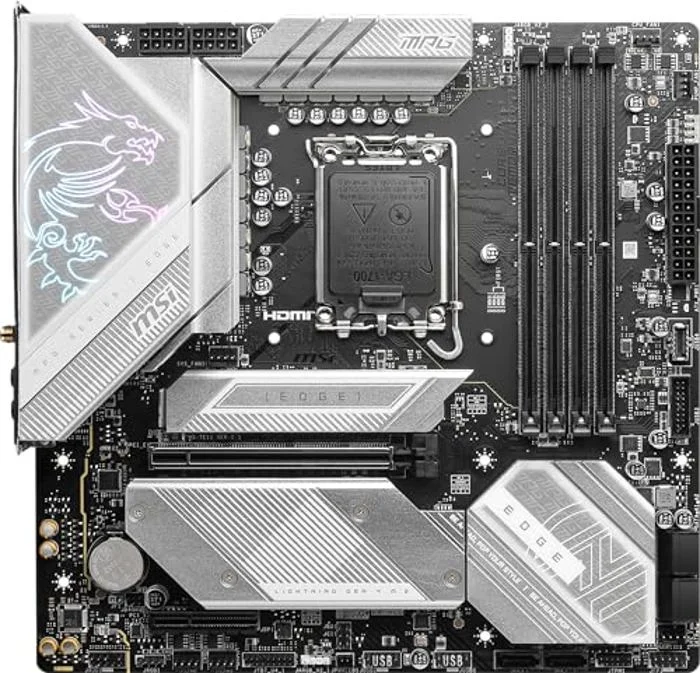

The MSI MPG B760M EDGE TI WIFI is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 7800 MT/s (OC).

MSI MPG B760M EDGE TI WIFI LGA 1700 Intel B760 SATA 6Gb/s DDR5 Micro ATX Motherboard 14th/ 13th/ 12th Gen Processors PCI-E x16 slot 3x M.2 2.5Gbps LAN Wi-Fi 6E Supports Bluetooth Memory Standard: DDR5 5600 Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC897 PCI Express 5.0 x16: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) Max LAN Speed: 2.5Gbps CPU Type: Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold Maximum Memory Supported: 192GB Channel Supported: Dual Channel

Manufacturer	MSI
Model Number	MPG B760M EDGE TI WIFI
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel B760
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	1
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

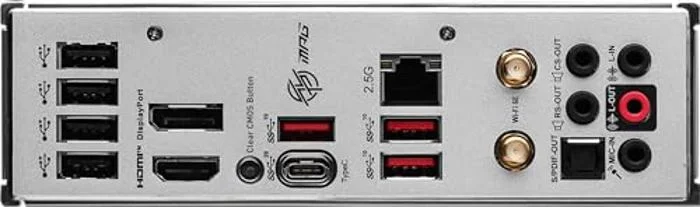

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MPG B760M EDGE TI WIFI
SKU Code	MPG B760M EDGE TI WIFI
GTIN / EAN	824142337813
