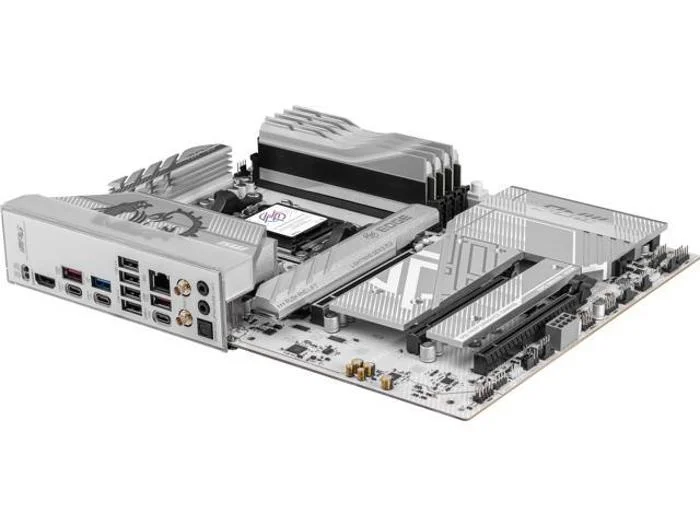

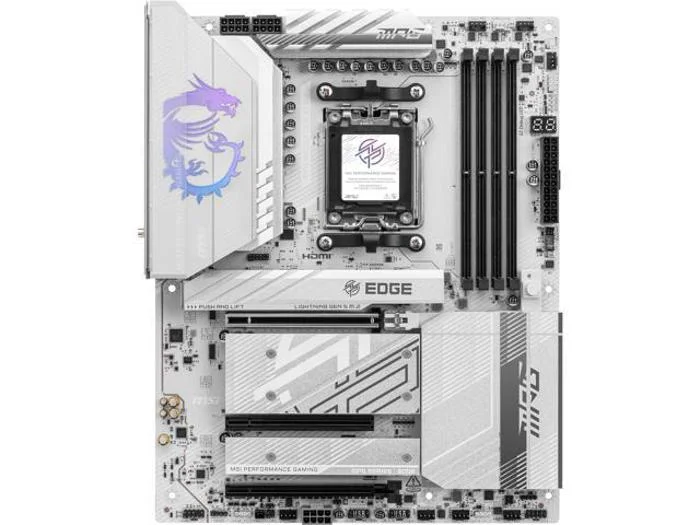

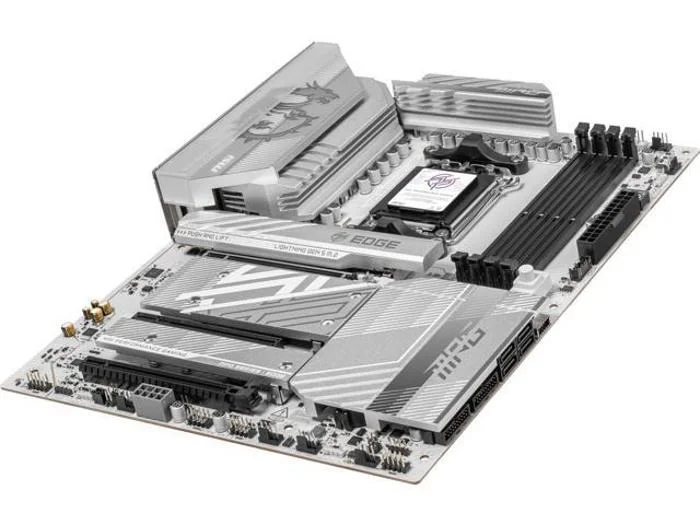

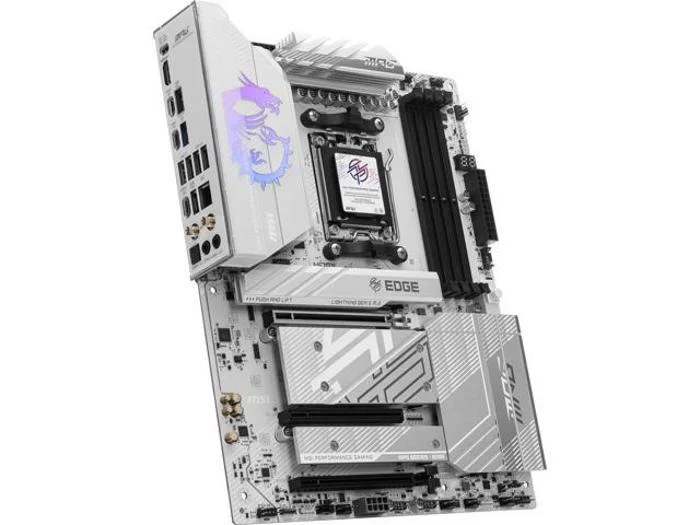

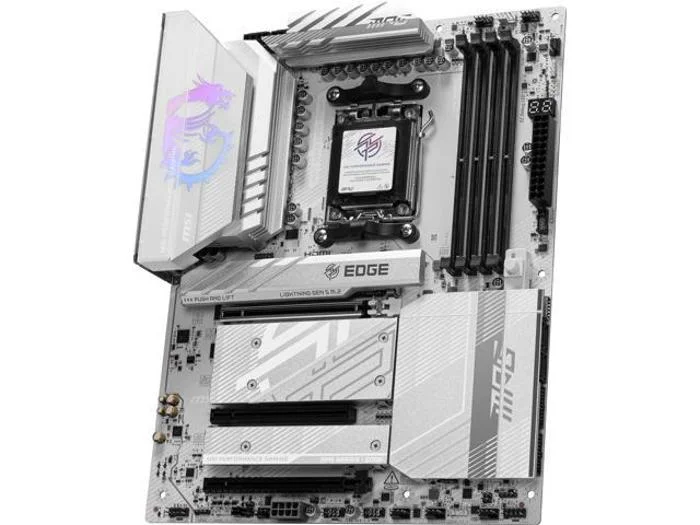

MSI MPG B850 EDGE TI WIFI

MSI MPG B850 EDGE TI WIFI AM5 ATX DDR5 256 GB Motherboard

MSI Motherboard $279.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB850

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The MSI MPG B850 EDGE TI WIFI is a ATX motherboard for AM5. It supports DDR5 memory up to 8400 MT/s (OC).

MSI MPG B850 EDGE TI WIFI AM5 AMD B850 SATA 6Gb/s 5G Network Wi-Fi 7 DDR5 Audio Boost 5 Motherboard Number of Memory Slots: 4x288pin (DDR5) Memory Standard: Up to DDR5 8400+ MT/s (OC) PCI Express x1: 1 x PCI Express 3.0 x1 Audio Channels: 7.1 Channels Max LAN Speed: 5Gbps CPU Type: Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 PCI Express 4.0 x16: 1 x PCI Express 4.0 x16

Manufacturer	MSI
Model Number	MPG B850 EDGE TI WIFI
Launch Date	January 2025
CPU Socket	AM5
Chipset Model	Intel B850
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-7900 / DDR5-7950 / DDR5-8000 / DDR5-8200 / DDR5-8266 / DDR5-8400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2280 / 22110 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MPG B850 EDGE TI WIFI
SKU Code	MPG B850 EDGE TI WIFI
GTIN / EAN	824142395349
